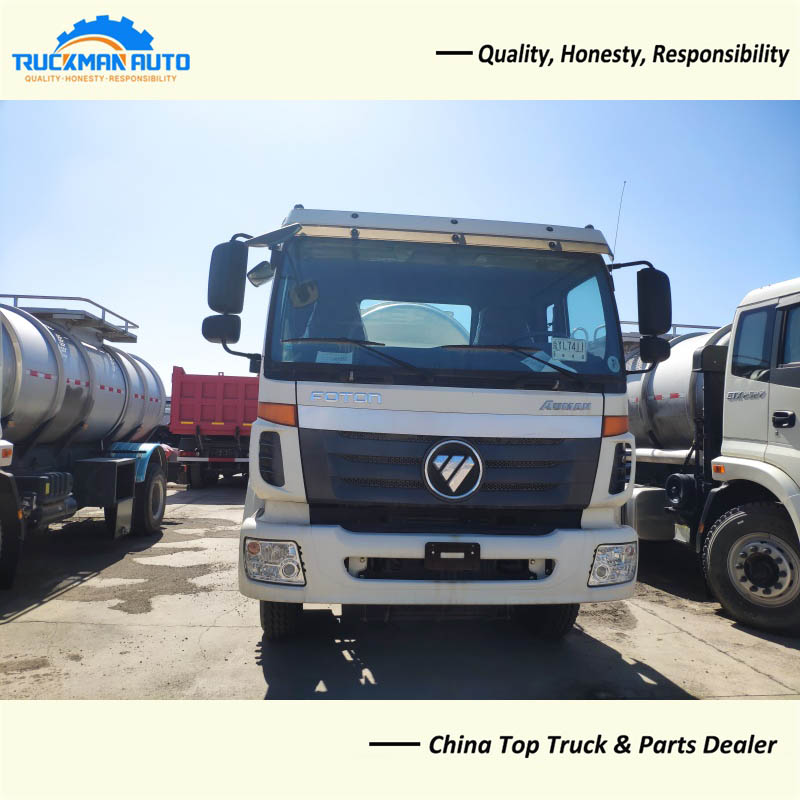

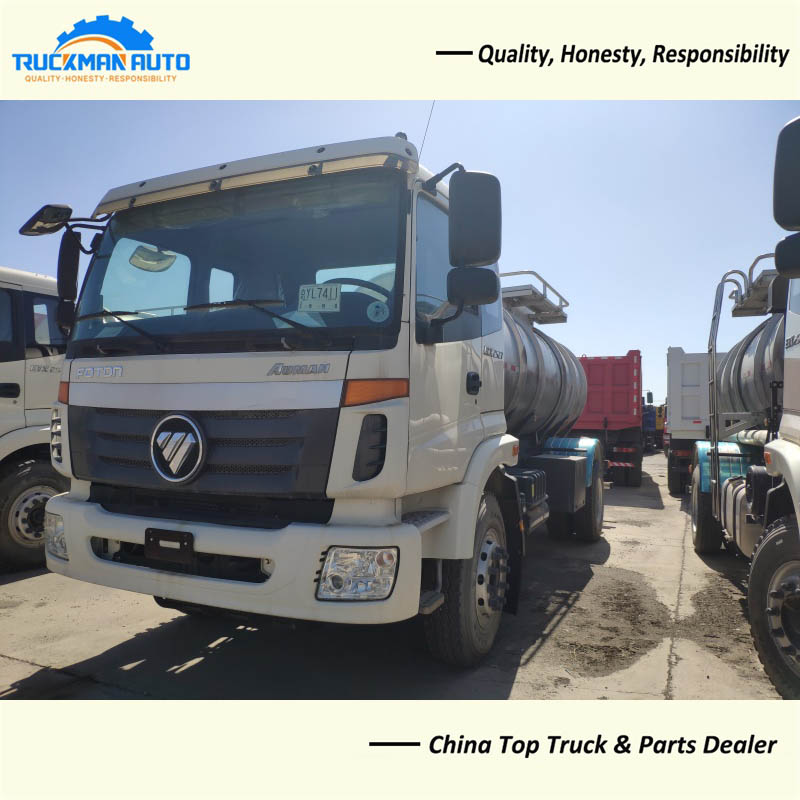

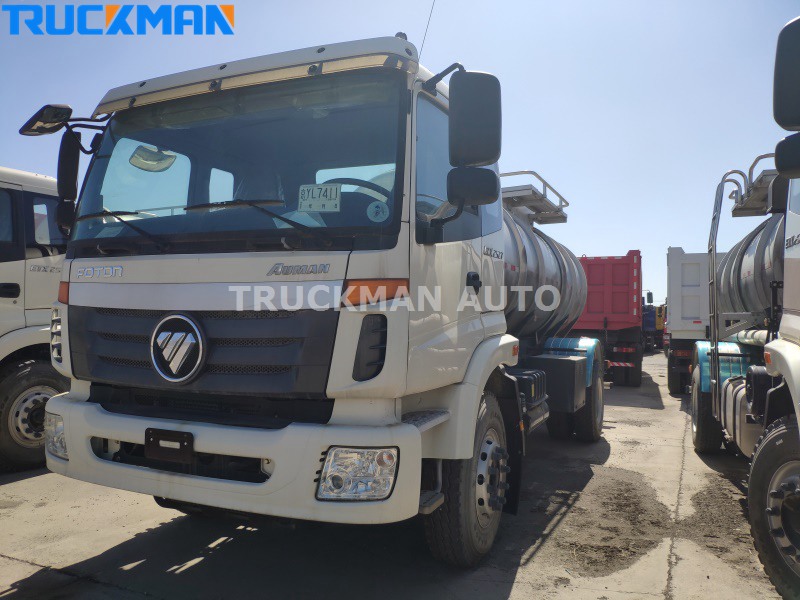

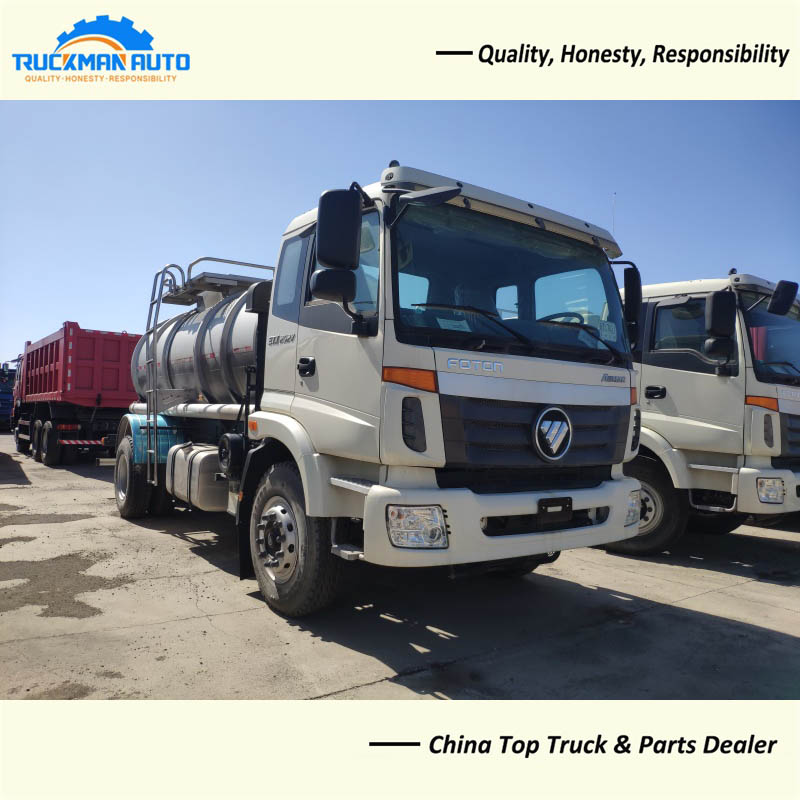

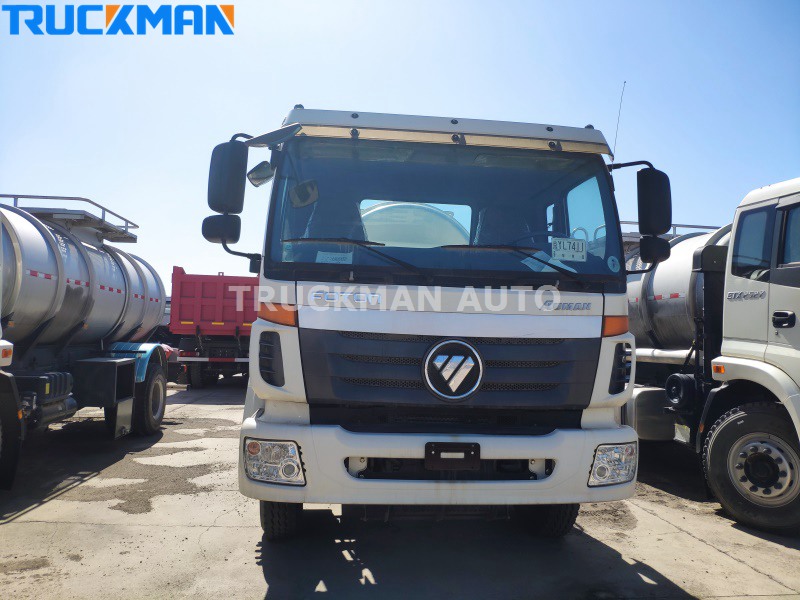

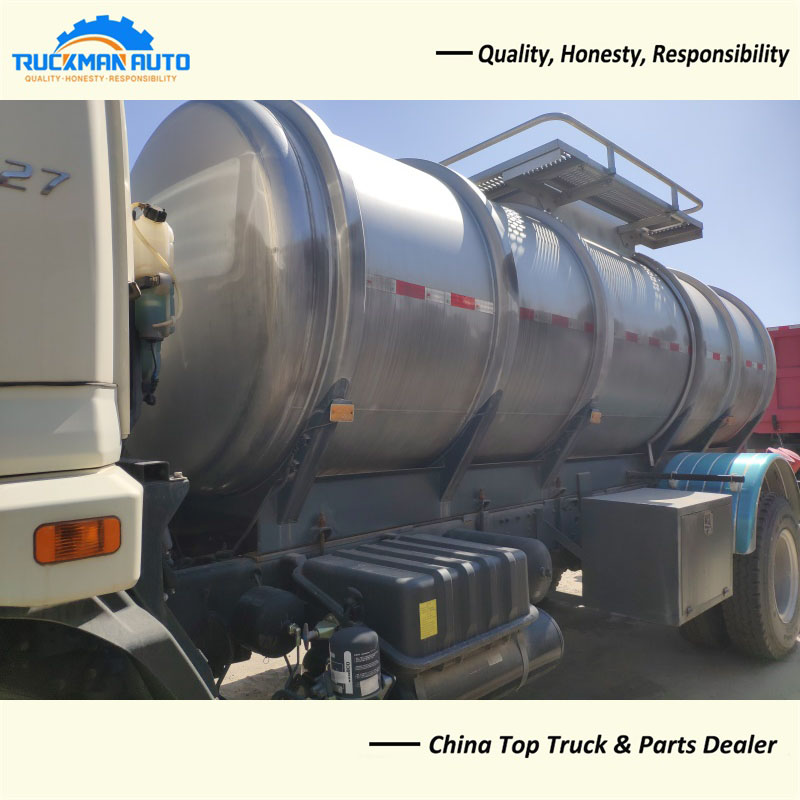

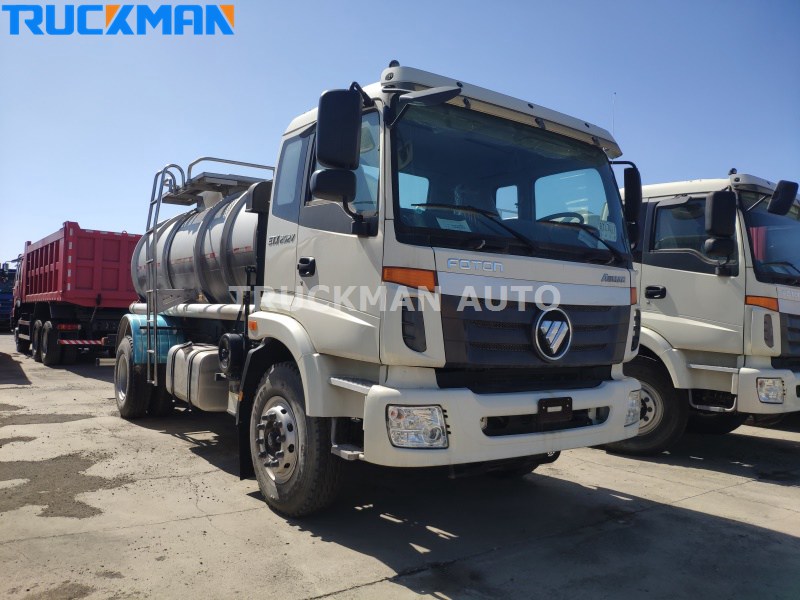

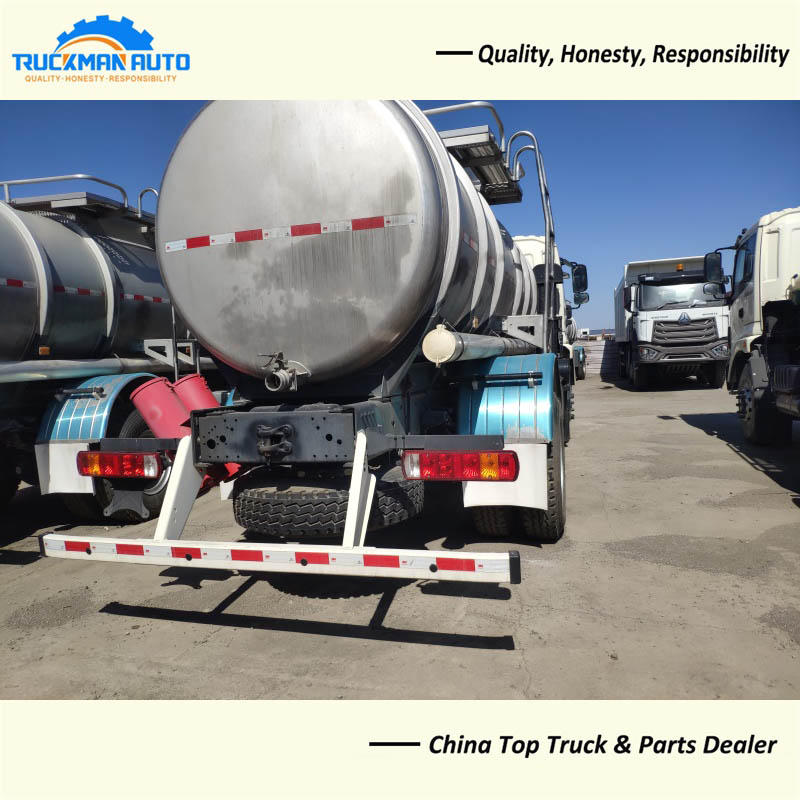

10m3 FOTON Vacuum Sewage Truck

About 10m3 FOTON Vacuum Sewage Truck

Adopting FOTON OUMAN chassis, equipped with YUCHAI engine, strong power, economical and fuel-efficient, the effective volume of the upper tank is 10 square, cylindrical tank, strong pressure resistance, not easy to deform.Cab within reach of switches and operating systems, adjustable steering wheel, adjustable seat, humanized design, interior design close to the needs.

10m3 FOTON Vacuum Sewage Truck Specification

Product Name: 10m3 FOTON Vacuum Sewage Truck

Application: Transportation of sewage

Engine: YC6J225N-52, 225HP

Cabin: With one bed, A/C

Gearbox: 10 forward and 2 reverse gear

Tire: 315/80R22.5, 6+1 pcs

Tanker Body: 10000 Liter

Fuel Tank: 300L

Color: Optional

Dimension:7570 x2490x2900mm

10m3 FOTON Vacuum Sewage Truck specification only for your reference, we can manufacture other Vacuum Sewage Truck basic your request.

10m3 FOTON Vacuum Sewage Truck Hydraulic System

The hydraulic oil ports of all components are equipped with sealing plugs to prevent the intrusion of dirt. Hydraulic cylinder is made of high-pressure galvanized steel, good hardness and pressure resistance, anti-corrosion and anti-rust, durable and beautiful, hydraulic cylinder adopts imported ferrule type rigid connectors, greatly reducing the interface oil leakage and oil seepage phenomenon, the service life is synchronized with the upper.

10m3 FOTON Vacuum Sewage Truck Anti-fouling Vacuum Pump

Strictly set up secondary protection for the vacuum pump to prevent pollution from soaking into the pump body and ensure sufficient suction vacuum. The drive is operated manually to make the clutch convenient, and the hydraulic oil pump and the vacuum pump synchronize the action, which makes the work stable and reliable.
