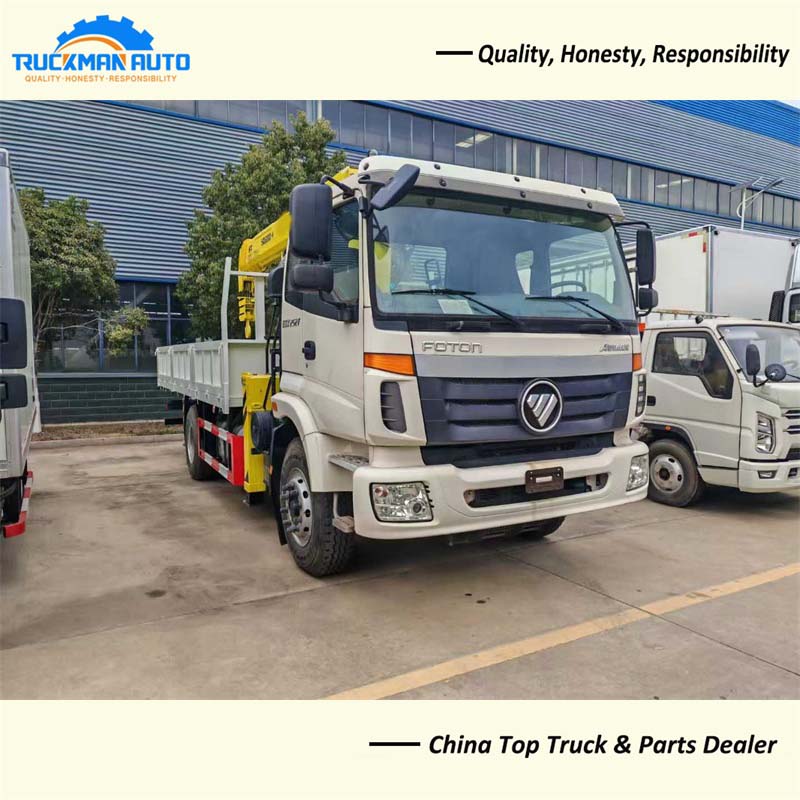

4x2 FOTON AUMAN Truck Mounted Crane

About 4x2 FOTON AUMAN Truck Mounted Crane

The truck mounted crane adopts FOTON special chassis, three-layer beam with reinforced guard plate, widened and thickened steel plate spring, and super strong load-bearing capacity. The crane adopts four-section straight arm structure, which is not only convenient to operate, but also can quickly adjust the working radius and angle, and can strictly control the lifting and lowering of the lifting objects to meet the diversified lifting needs. The cab adopts multifunctional steering wheel and optional airbag seat, air conditioner to improve driving comfort.

4x2 FOTON AUMAN Truck Mounted Crane Specification

Product Name: 4x2 FOTON AUMAN Truck Mounted Crane

Application: Cargo transportation

Engine: 230HP, Euro 2

Cabin: With one bed, A/C

Gearbox: 6 forward and 1 reverse gear

Tire: 10.00R20, 6+1 pcs

Fuel Tank: 200L

Crane: 505200-4, Straight arm

Dimension: 7280×2340×3350mm

4x2 FOTON AUMAN Truck Mounted Crane only for your reference, we can manufacture other Truck Mounted Crane basic your request.

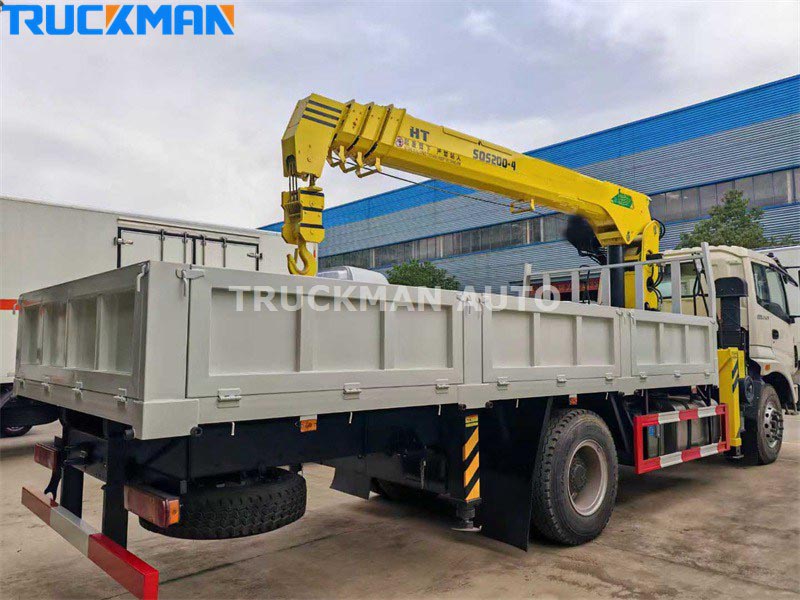

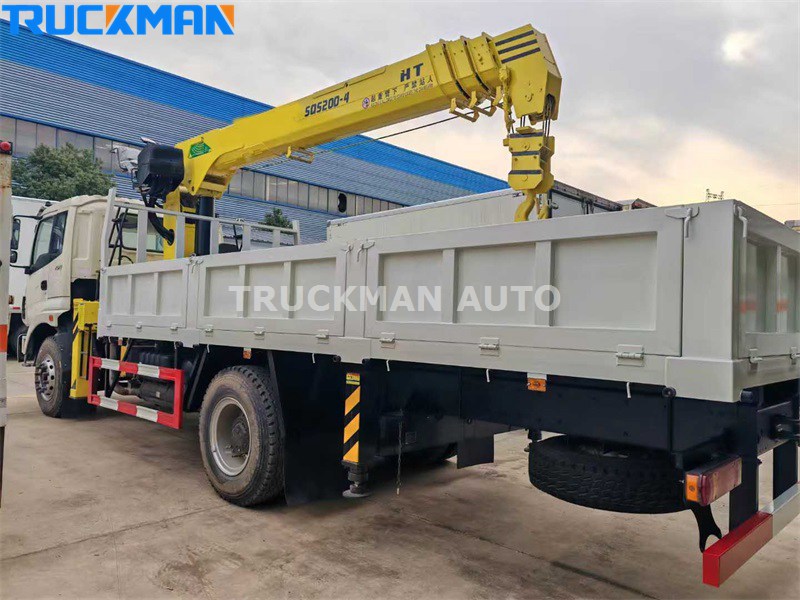

4x2 FOTON AUMAN Truck Mounted Crane Straight Arm

The truck mounted crane adopts a straight boom crane, which adopts the lifting organization of the wire rope's retracting and releasing, which is easier to manipulate. The boom design is sturdy and durable with superior lifting performance, equipped with high-speed piston motor, precision casting reel and planetary reducer slewing mechanism to ensure efficient and stable operation. The straight boom truck crane can also extend the working depth by lengthening the wire hook. The vehicle is equipped with automatic hook retracting device, which improves the operation convenience and safety.

4x2 FOTON AUMAN Truck Mounted Crane Cargo Box

The thickness of the bottom plate of the cargo box of the truck-mounted crane is 4mm, which is made of manganese plate, compared with ordinary carbon steel, manganese plate has higher yield strength and better impact and fatigue resistance, so the box plate is not easy to be affected by the impact of heavy goods, and has a long service life. At the same time, our cargo box can also be used according to the customer's environment to do telescopic cargo box, tipper box, the best telescopic length of 60-80 centimeters.
