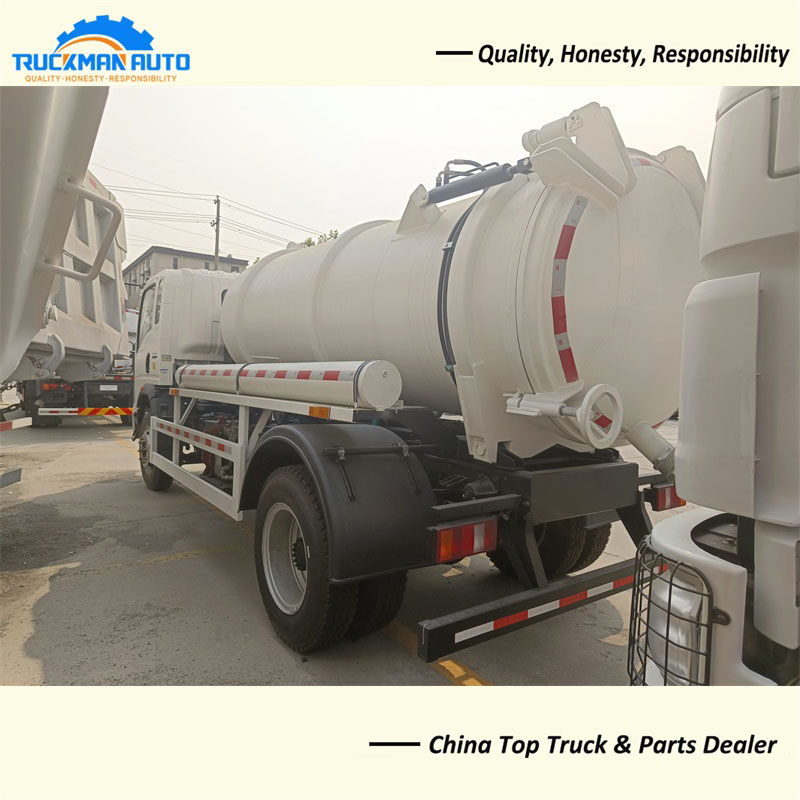

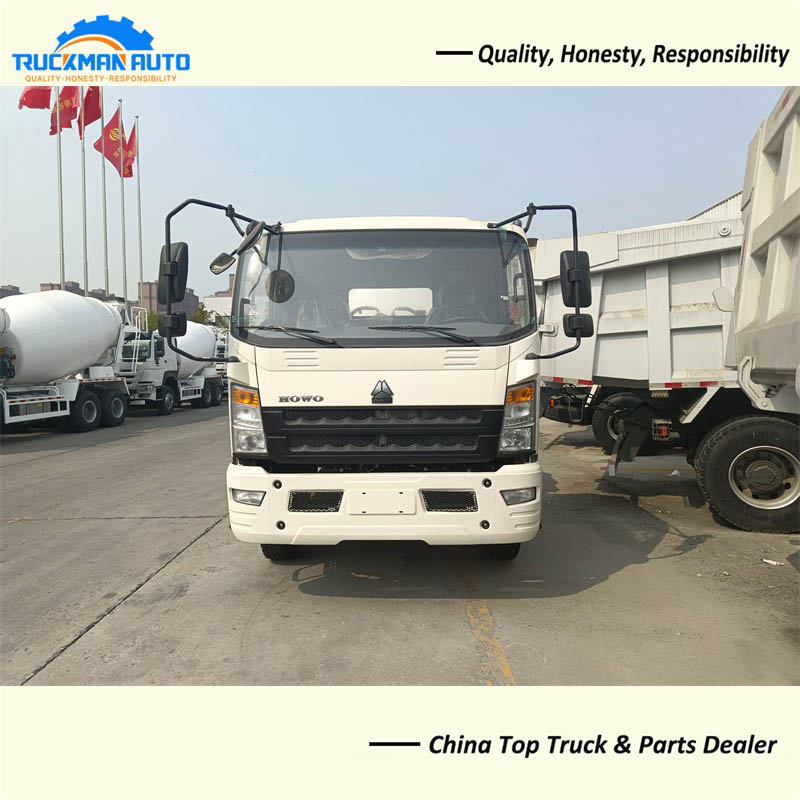

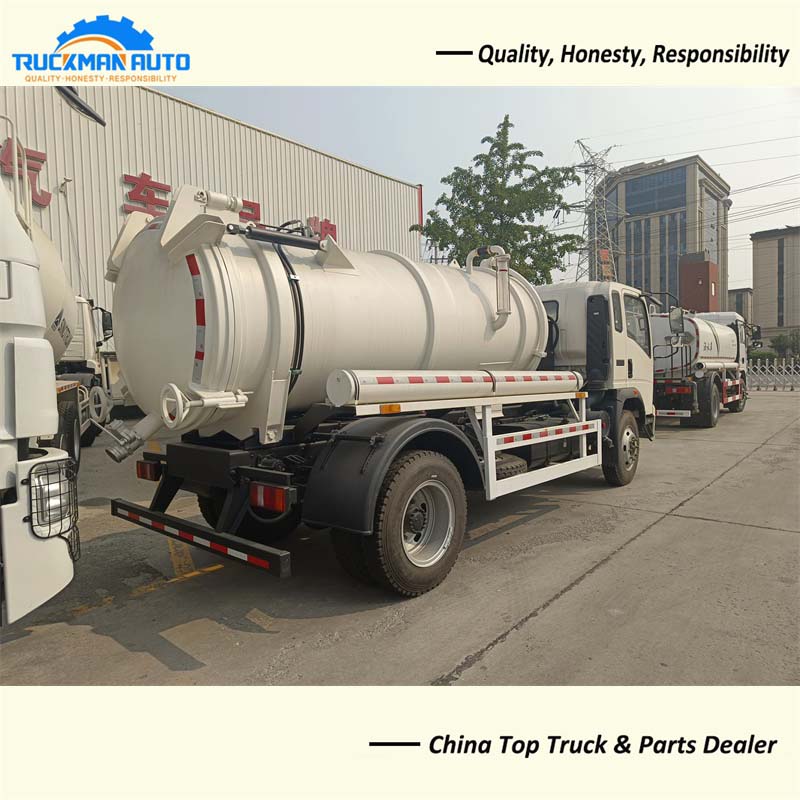

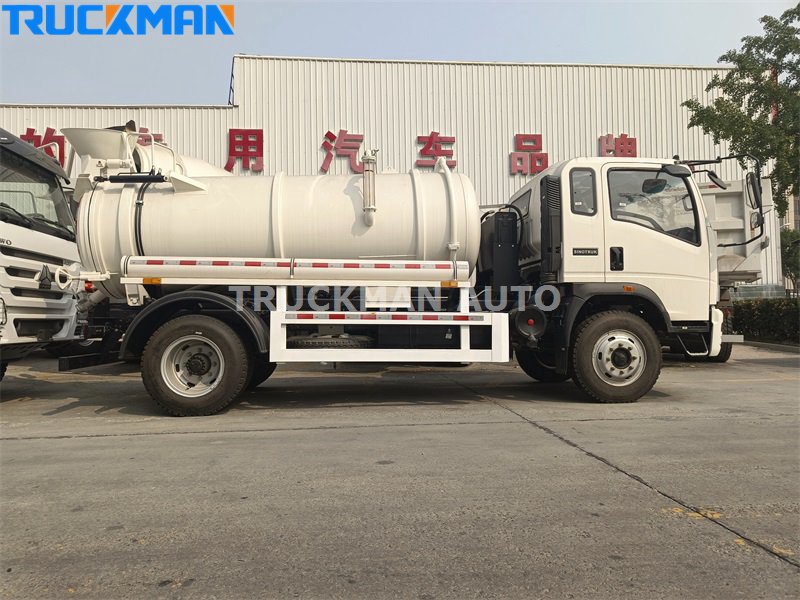

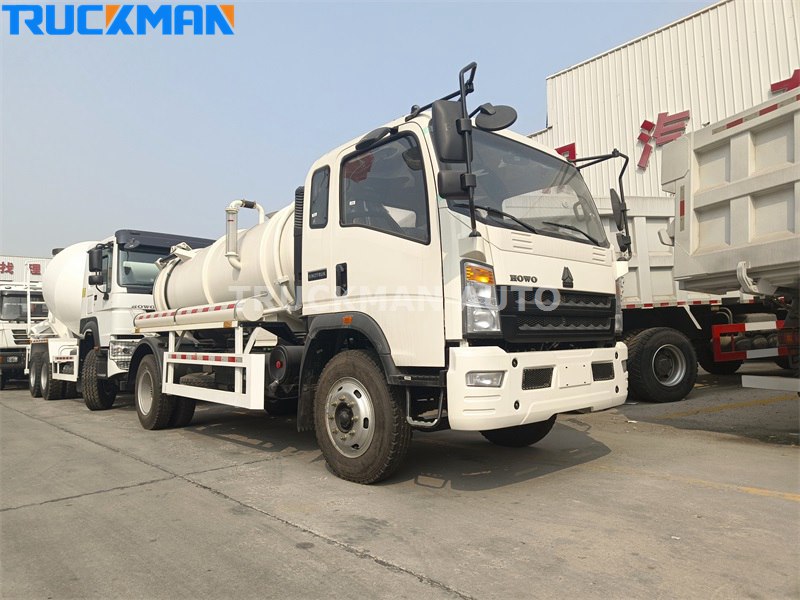

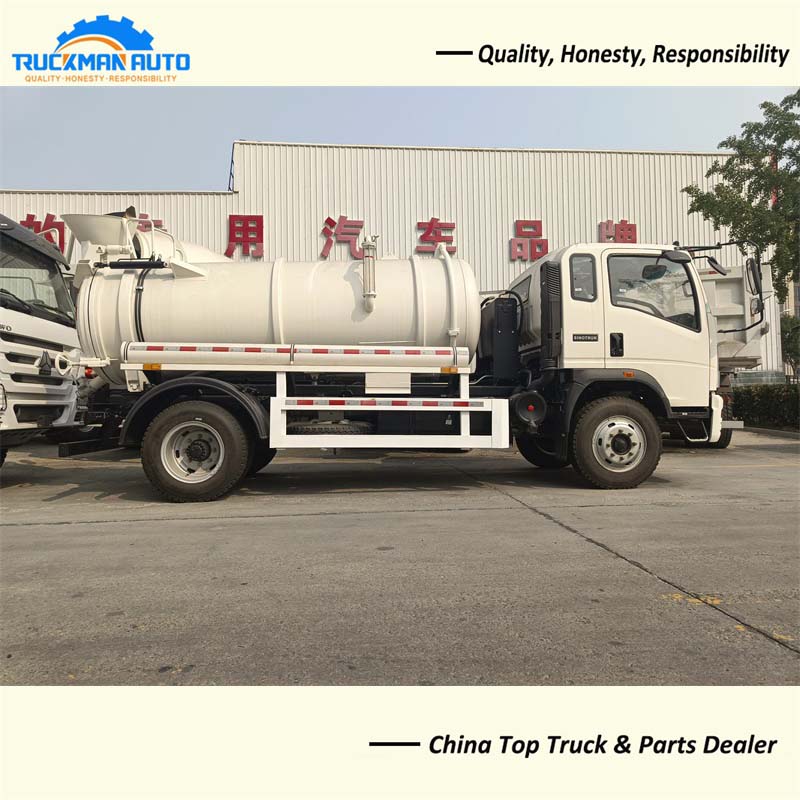

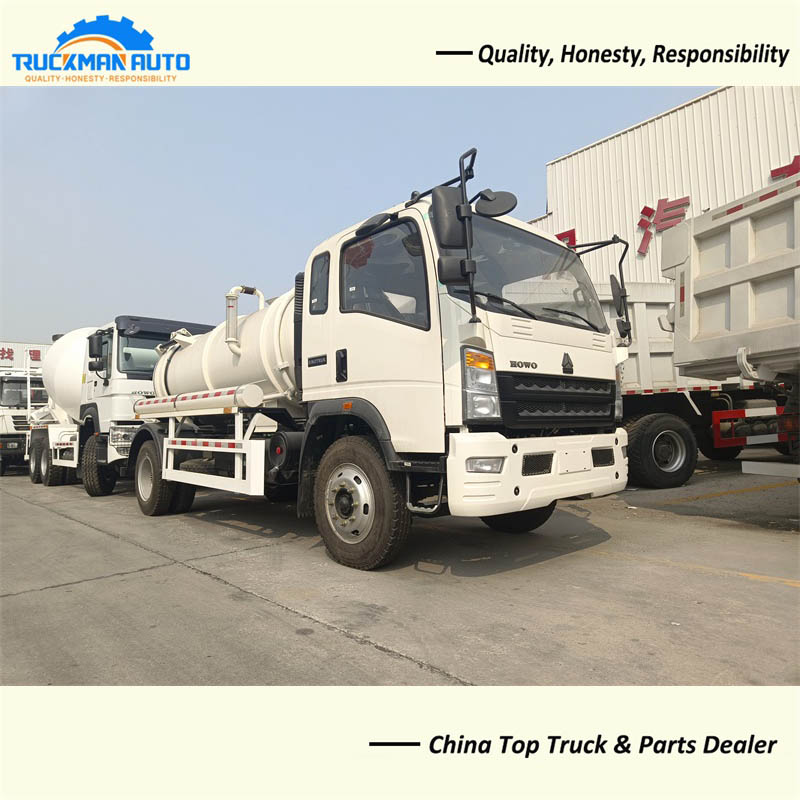

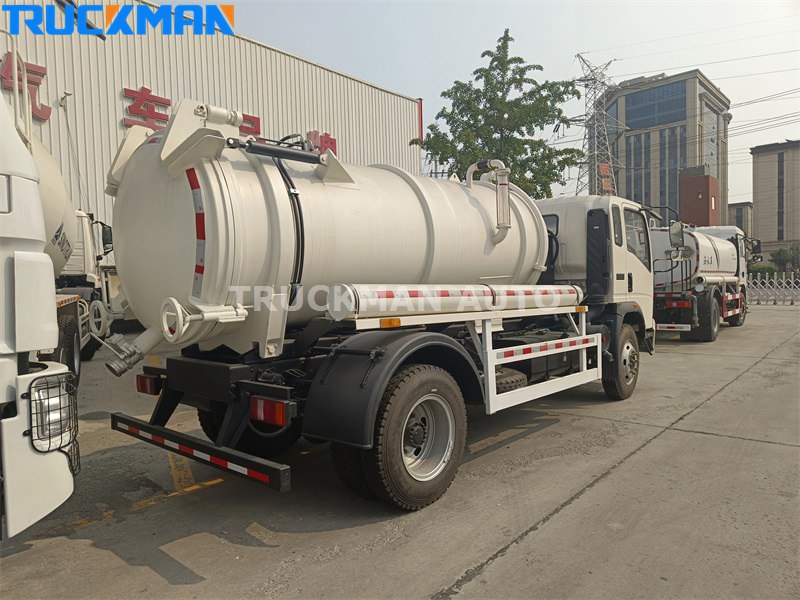

5 Cubic Meters SINOTRUK HOWO Vacuum Sewage Truck For Liberia

About 5 Cubic Meters SINOTRUK HOWO Vacuum Sewage Truck

The tank body of the SINOTRUK vacuum sewage truck is made of carbon steel plate, standard with full-sealed water circulation pump, anti-overflow valve, sight manure pipe, and the tank head is molded by one-time die-casting, which is more solid and sturdy. Equipped with split mirrors, reducing the blind spot, safer driving. The dirt in the tank can be dumped directly through the rear pipeline, featuring high vacuum, high efficiency and wider use.

5 Cubic Meters SINOTRUK HOWO Vacuum Sewage Truck Specification

Product Name: 5 Cubic Meters SINOTRUK HOWO Vacuum Sewage Truck

Application: Transport sewage

Engine: 160HP, EURO 2 emission standard

Cabin: with one bed, A/C

Gearbox: 6 forward and 1 reverse gear

Tire: 8.25R20 ,6+1 pcs

Color: optional

Fuel Tank: 220L

Tank Body: 5 Cubic Meters

5 Cubic Meters SINOTRUK HOWO Vacuum Sewage Truck only for your reference, we can manufacture other Vacuum Sewage Truck basic your request.

5 Cubic Meters SINOTRUK HOWO Vacuum Sewage Truck Working principle

Because the hose is always submerged in the liquid surface, the air in the manure tank is pumped, because it can not be supplemented and more and more thin, resulting in the pressure in the tank is lower than the atmospheric pressure, manure that is used in the atmospheric pressure, through the suction hose into the tank. Or due to the siphon near the bottom of the tank, the air is constantly discharged into the manure tank, because it has no outlet and is compressed, resulting in higher pressure than the atmospheric pressure in the tank, manure that is under the action of the compressed air, through the siphon, suction hose discharged out of the tank.

What Should Pay Attention To When Operating A Sewage Truck?

Maintaining the vacuum pump at the proper rpm allows you to pre-adjust the maximum adjustment position of the hand throttle.

Turning the can on the flat ground, Overturning a tank on a sloping road will cause distortion and deformation of various components, leading to failure, and may also cause a rollover accident.

Open the rear door and window first when turning over the can.

When the truck is moving, pay special attention to: the lever of the power take-off box is placed in the middle position.

When entering the bottom of the tank or overhauling the tank in the state of lifting the sludge tank, you must use the support bar and the safety block.
