SINOTRUK HOWO 8x4 Side Loader Truck For 20ft Container

About SINOTRUK HOWO 8x4 Side Loader Truck For 20ft Container

HOWO side loader truck is widely used in the connection of railway, waterway and empty container transportation. In addition to the basic use of loading and unloading containers, it can also use pallets to load and unload and carry various equipment and materials, perform container stacking operations, and cooperate with railway flat cars to deliver containers. HOWO side loader truck can serve as a link between ports, railway stations, airports and other regions.

SINOTRUK HOWO 8x4 Side Loader Truck For 20ft Container Specification

Engine: WP12.400E201, 400HP. Euro 2

Cabin: HW76,With one bed, A/C

Gearbox: HW19710+HW70, 10F & 2R, with PTO, manual gearbox

Drive Axle: MCX16ZG,2x16000kg,

Tire: 12.00R20, radial tire, 12+1 pcs

Side Crane: XCMG MQH37

Fuel Tank: 400L

Dimension:  11180x2580x3330mm

SINOTRUK 8X4 HOWO side loader truck for 20ft container specification only for your reference, we can manufacture other model truck basic your request.

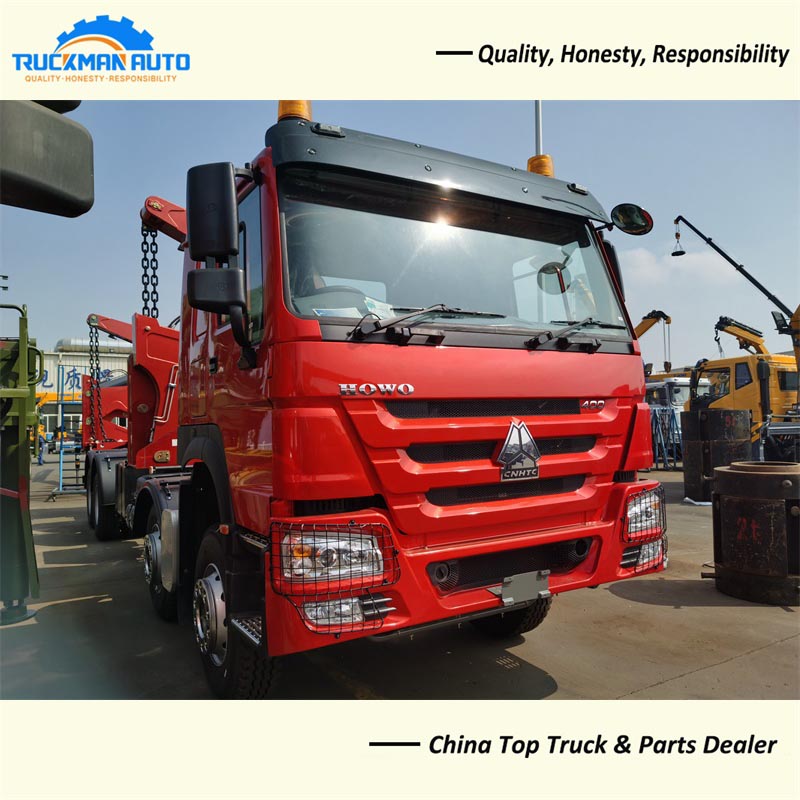

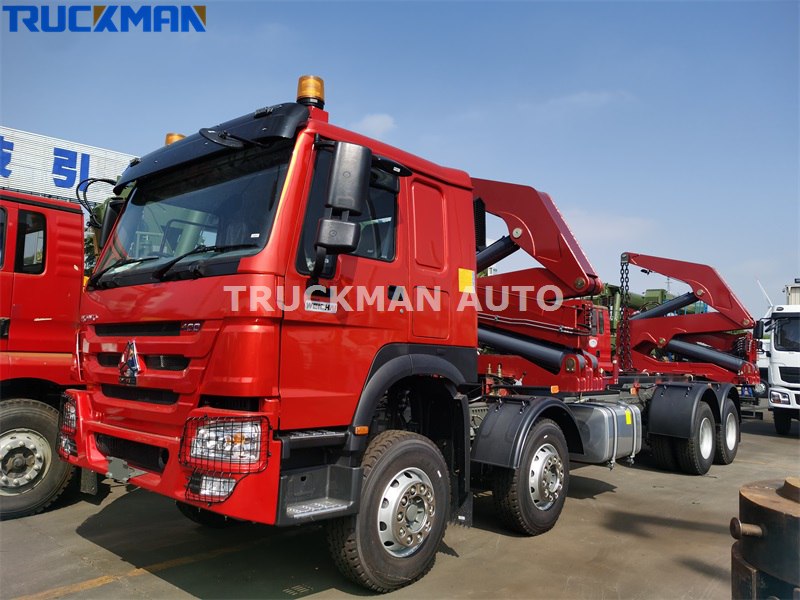

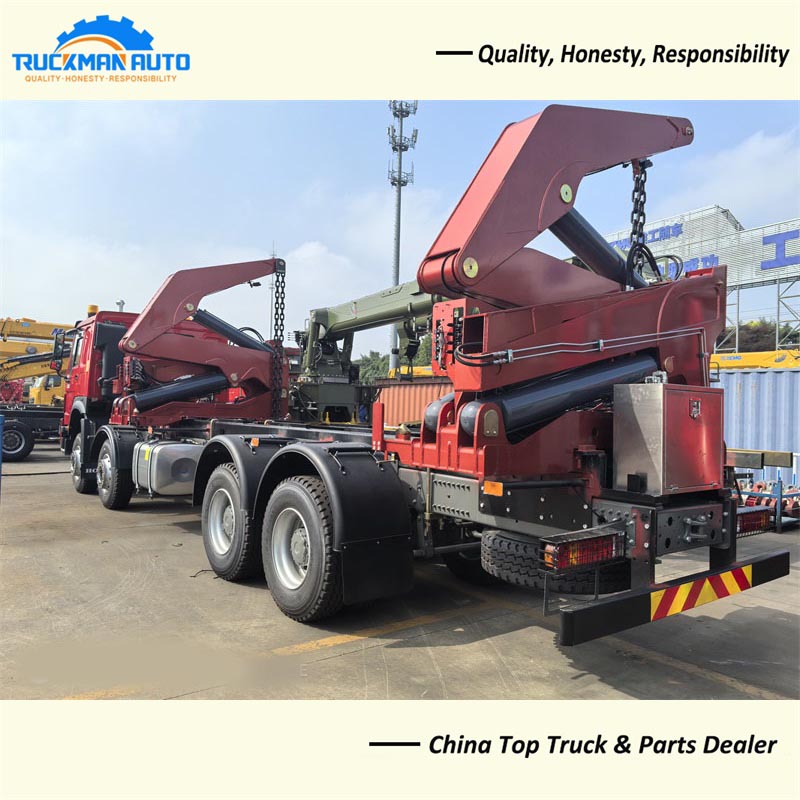

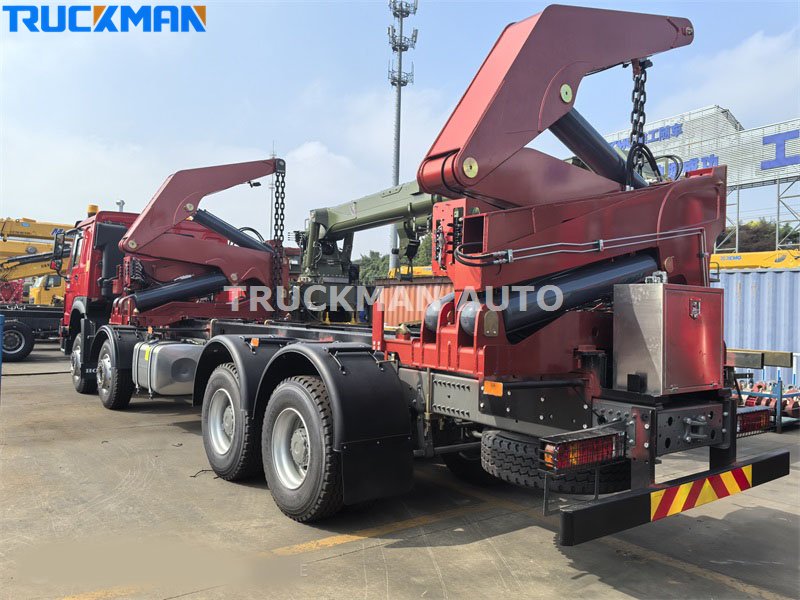

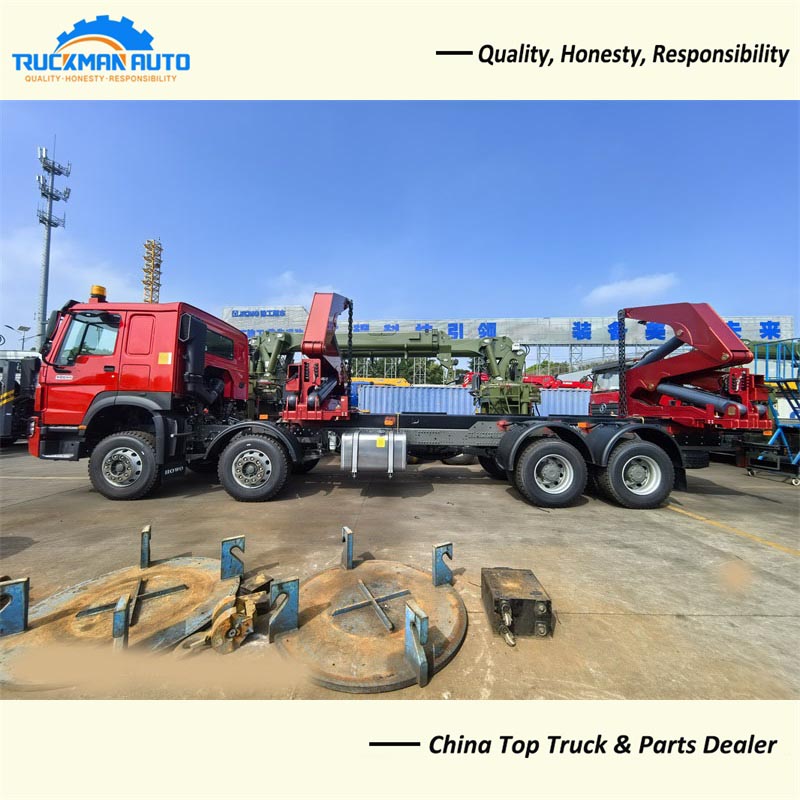

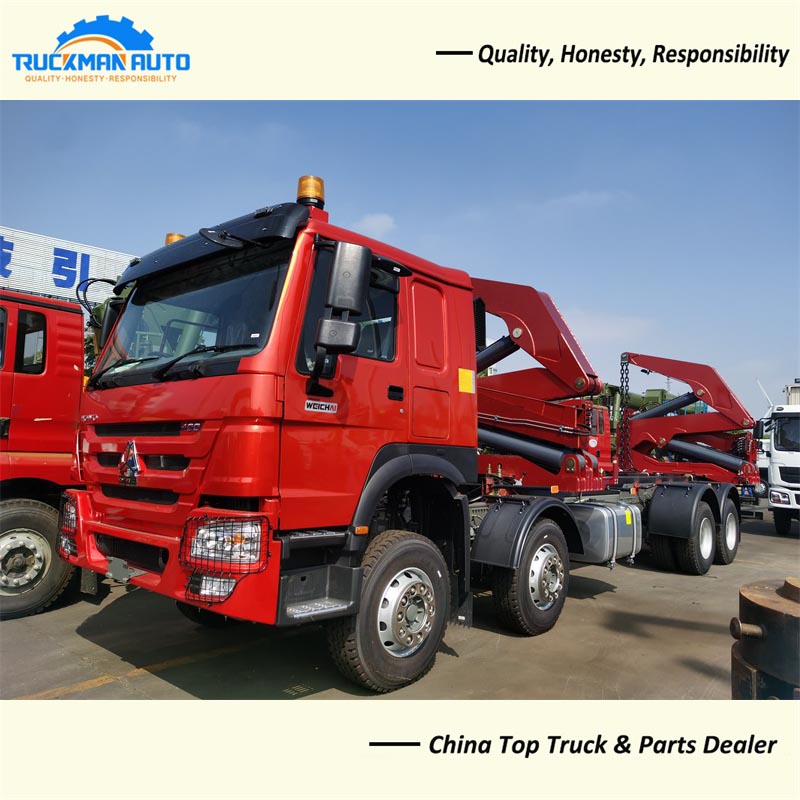

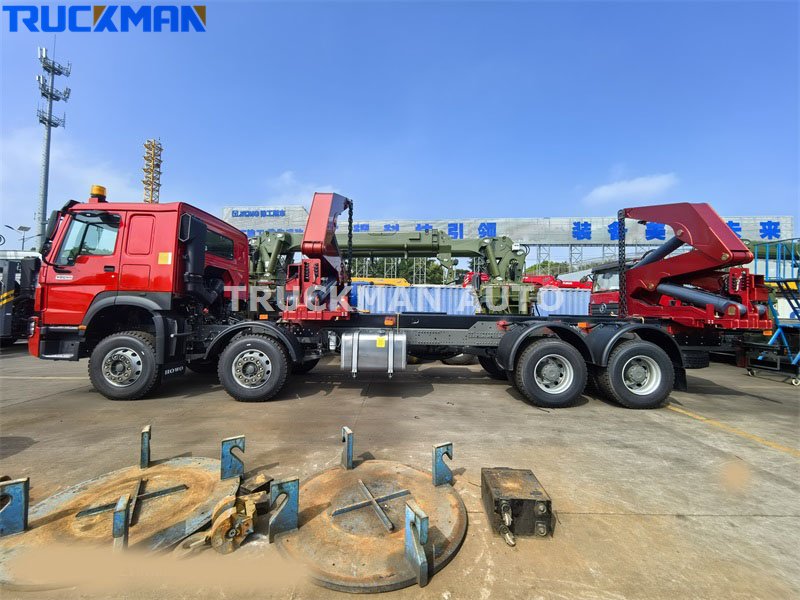

SINOTRUK HOWO 8x4 Side Loader Truck For 20ft Container

During the operation of HOWO side loader truck, one side of the outrigger is equipped with an intelligent anti-rollover protection system, which monitors the stability of the whole machine in real time. If there is a risk of tilting, it can automatically alarm and effectively lock. The other side of the outrigger is protected by a baffle to prevent the container from entering the dangerous area. HOWO side crane truck ensures safety and reliability through advanced software analysis and rigorous testing. At the same time, high-quality hydraulic seals, high-level electrical protection, safe and reliable locking mechanism, practical and safe emergency stop function also increase safety.

What Are The Advantages Of HOWO Side Loader Truck ?

SINOTRUK side loader truck is mainly composed of chassis and side self-loading and unloading device. One machine can complete multiple operations such as container loading and unloading, transportation and stacking. SINOTRUK side loader truck can load and unload 20ft or 40ft containers or similar containers through the sliding of front and rear cranes. It has a wide range of applications and good versatility, which greatly expands the use of the equipment.
