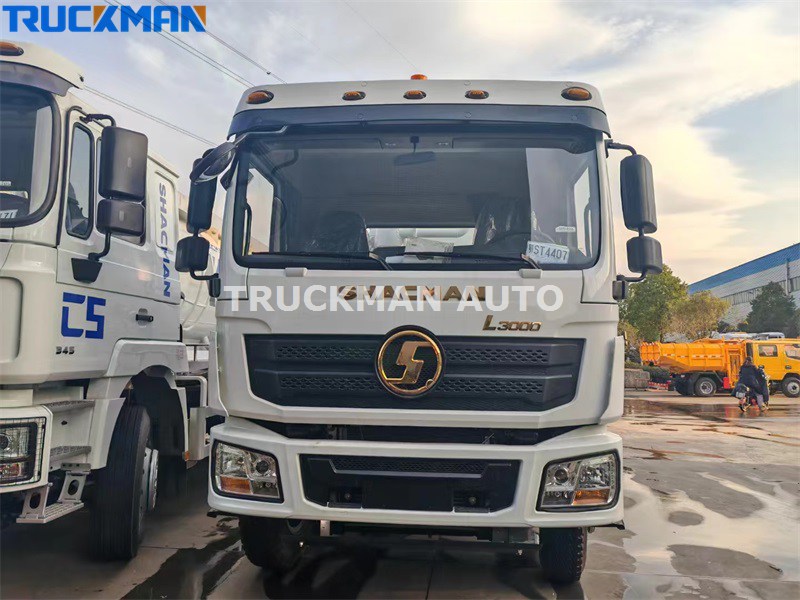

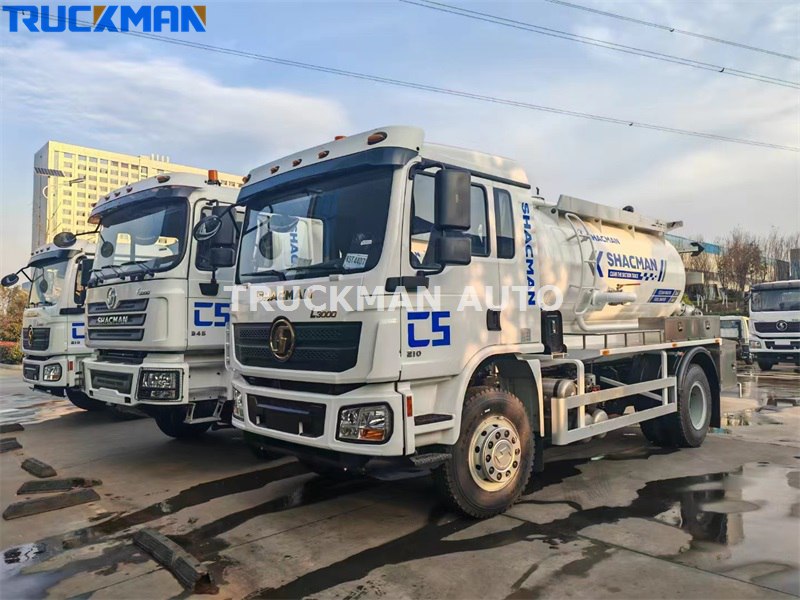

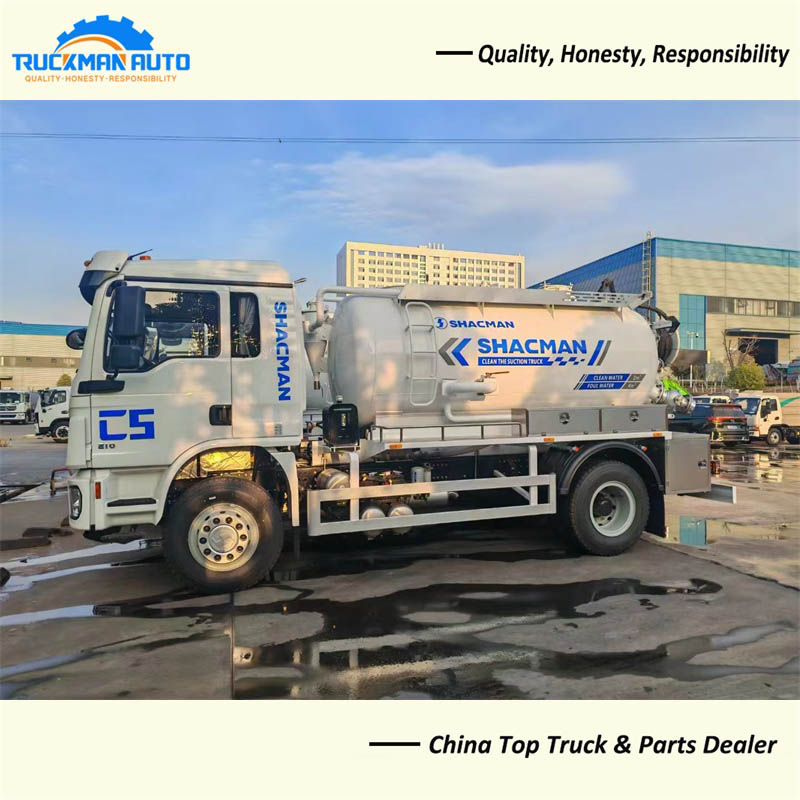

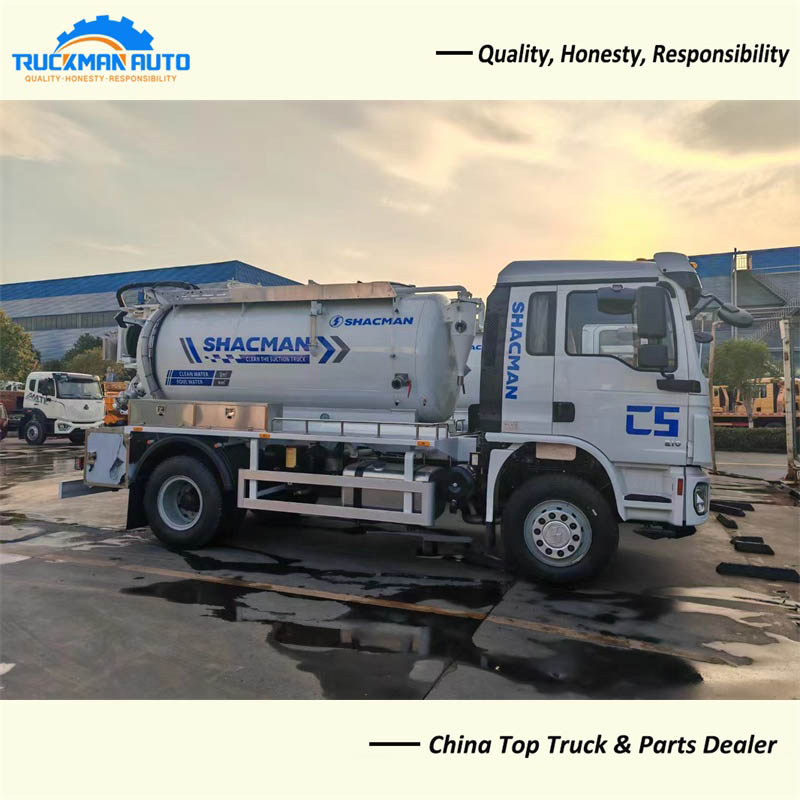

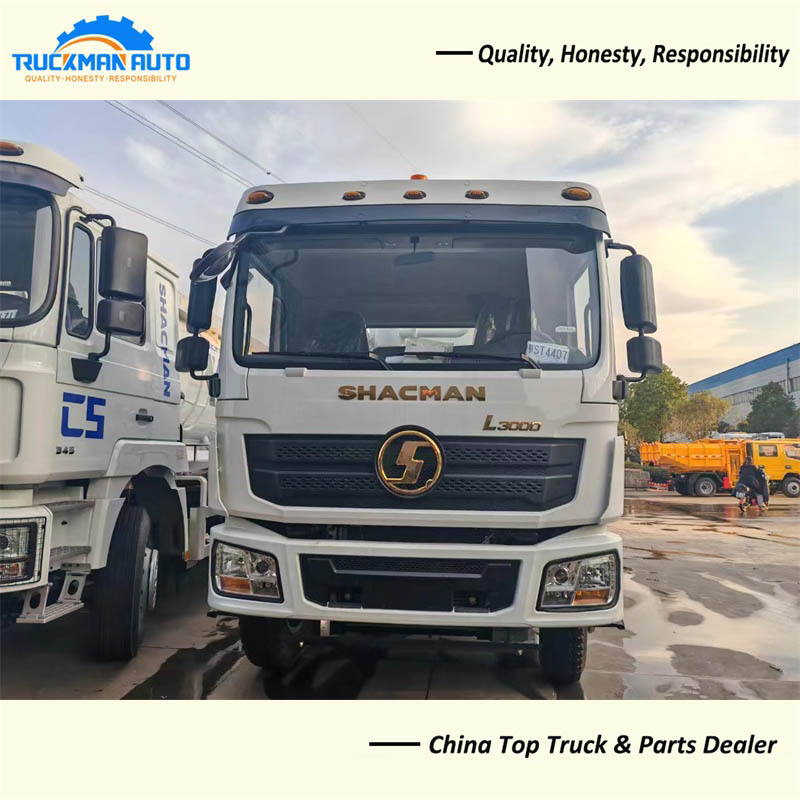

6m3 SHACMAN L3000 4X2 210HP Suction Truck For Angola

About 6m3 SHACMAN L3000 4X2 210HP Suction Truck

SHACMAN 6m3 suction truck adopts WEICHAI brand Euro II emission engine, 8-speed manual gearbox of FAST brand, 10-ton MAN technology single-stage reduction drive axle, 10R22.5 tire, SHACMAN 6m3 suction truck also adopts 6 cubic meters tank, which can be freely divided into clean water tank and sewage tank, realizing water and sewage interchange, and can efficiently handle sewage and cleaning work.

6m3 SHACMAN L3000 4X2 210HP Suction Truck Specification

Engine: WP6.210E22, 210HP, EURO II

Cabin: L3000,with one bed, A/C

Gearbox: 8JS85TM-Aluminum shell, manual gearbox

Drive Axle: 10T MAN Single bridge

Tire: 10R22.5, 6+1 pcs

Tank Body: 6m3

Fuel Tank:300L

Dimension: 8550x2520x3500mm

6m3 SHACMAN L3000 4X2 210HP suction truck specification only for your reference, we can manufacture other model truck basic your request.

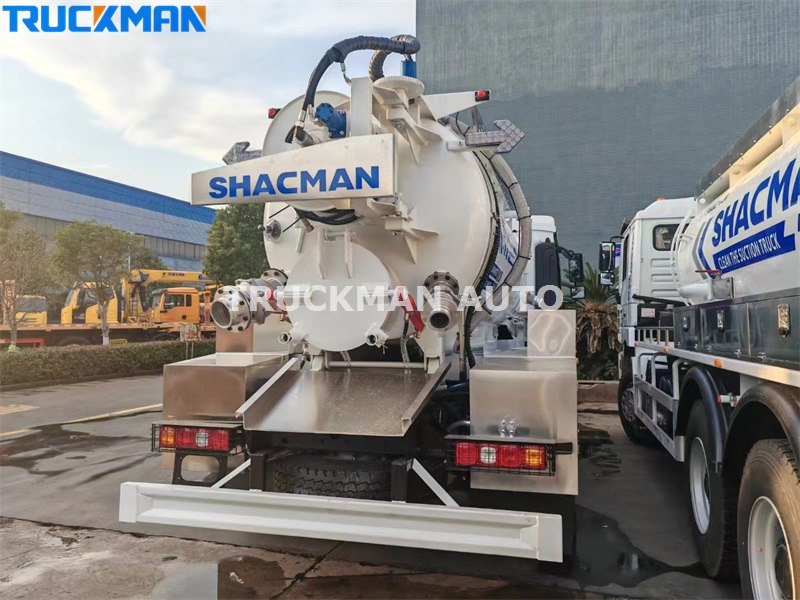

6m3 SHACMAN L3000 4X2 210HP Suction Truck Tank Body

SHACMAN L3000 suction truck is made of national standard high-quality 4-6mm carbon steel. The tank head is die-cast once. The tank can be opened from behind and unloaded from the double top. The dirt in the tank can be directly dumped through the rear cover, which is convenient for cleaning the sediment and solidified materials in the tank and repairing and maintaining the inside of the tank. The tank can be made of stainless steel, steel lined with plastic, or metal paint.

6m3 SHACMAN L3000 4X2 210HP Suction Truck Function

SHACMAN suction truck has the functions of high suction efficiency, self-priming, self-draining and self-unloading. SHACMAN suction truck has the characteristics of long service life, high vacuum degree (higher vacuum degree, longer suction range and greater pressure than fecal suction truck), fast working speed, easy operation and convenient transportation. SHACMAN suction truck can also be equipped with imported anti-overflow device to prevent feces and sewage from flowing back into the vacuum pump system due to full suction.
