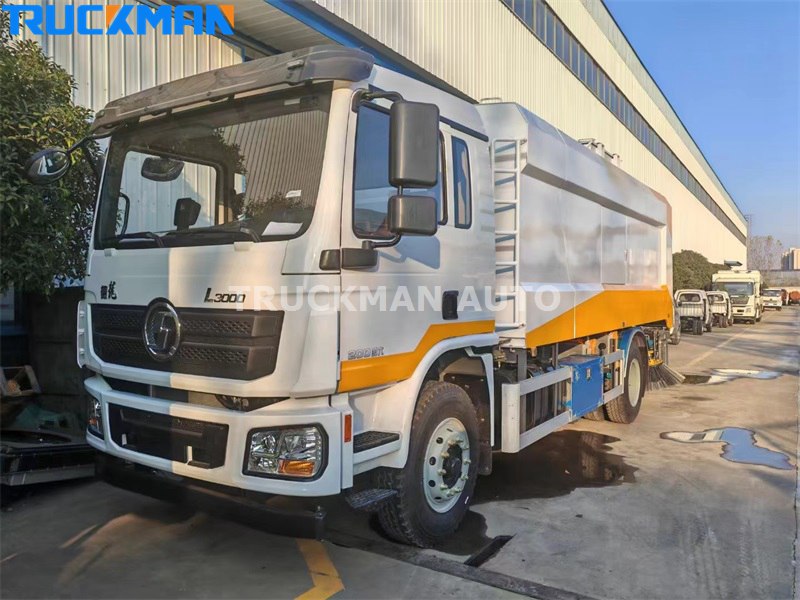

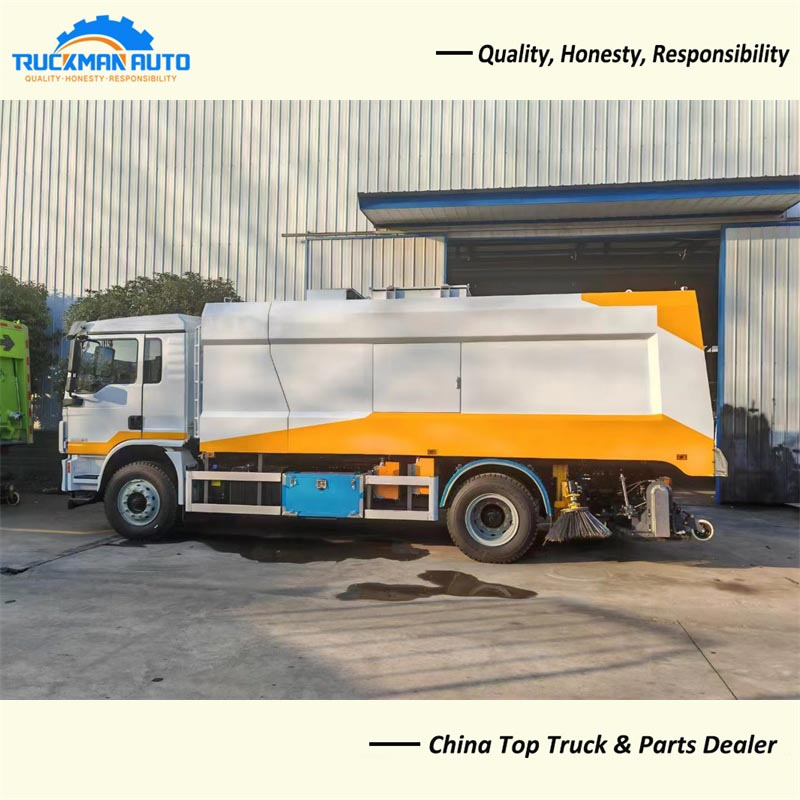

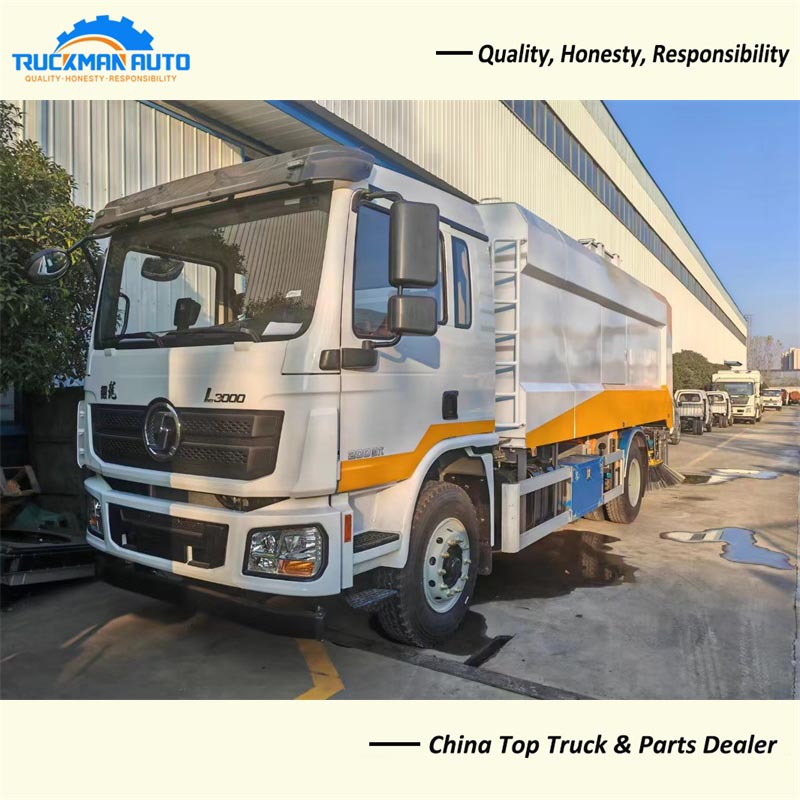

SHACMAN L3000 4X2 240HP Road Sweeper Truck

About SHACMAN L3000 4X2 240HP Road Sweeper Truck

The road sweeper truck has multi-functions such as road surface cleaning, road surface sweeping, curb cleaning, curb and curbstone elevation scrubbing, low-pressure rinsing, spraying and dust removal. The sweeping disk adaptive system can adaptively and automatically compensate for the wear of the sweeping disk brushes, which solves the problem of inconvenient adjustment of the sweeping disk brushes after wear. It adopts centralized control of electric, gas and liquid cab, and one-button operation by the driver, which greatly reduces the labor intensity of the operation.

SHACMAN L3000 4X2 240HP Road Sweeper Truck Specification

Product Name: SHACMAN L3000 4X2 240HP Road Sweeper Truck

Application: Cleaning work

Engine: WP6.240E32, 240HP, Euro 3

Cabin: With one bed, A/C

Gearbox: 6 forward and 1 reverse gear

Tire: 10.00R20, 6+1 pcs

Fuel Tank: 120L

Water Tank Volume: 4 cubic meters

Dustbin Capacity: 4 cubic meter

SHACMAN L3000 4X2 240HP Road Sweeper Truck only for your reference, we can manufacture other Road Sweeper Truck basic your request.

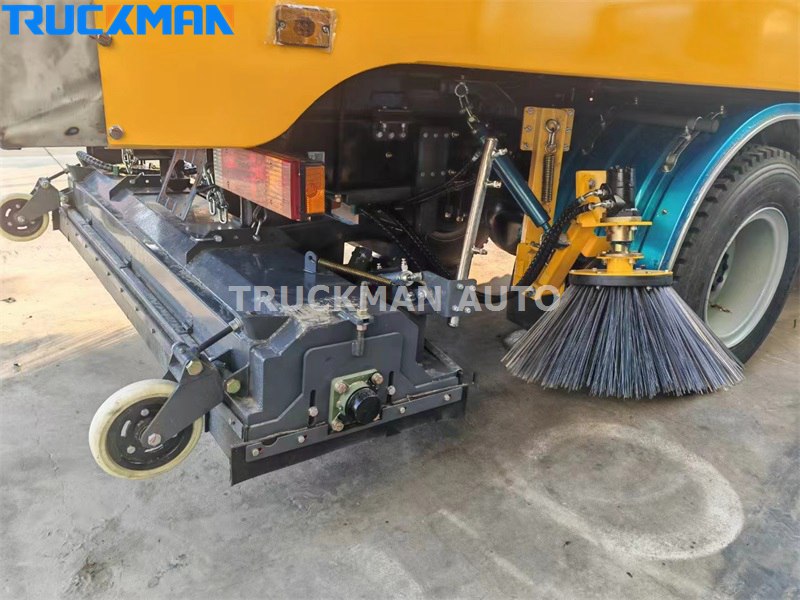

SHACMAN L3000 4X2 240HP Road Sweeper Truck Rear Suction Port

The rear suction port of the sweeper is articulated by three groups of independent suction ports, and the articulated wide suction port has strong adaptability to the road surface, which can be adjusted according to the change of road surface height and undulation to ensure the best garbage cleaning effect. The rear suction port has the function of washing and sucking on the dirty road surface. Strong decontamination ability, mainly used for sand, mud and fine garbage road cleaning and cleaning. The inner side of the suction nozzle has been treated with abrasion-resistant treatment to improve the service life of the suction nozzle.

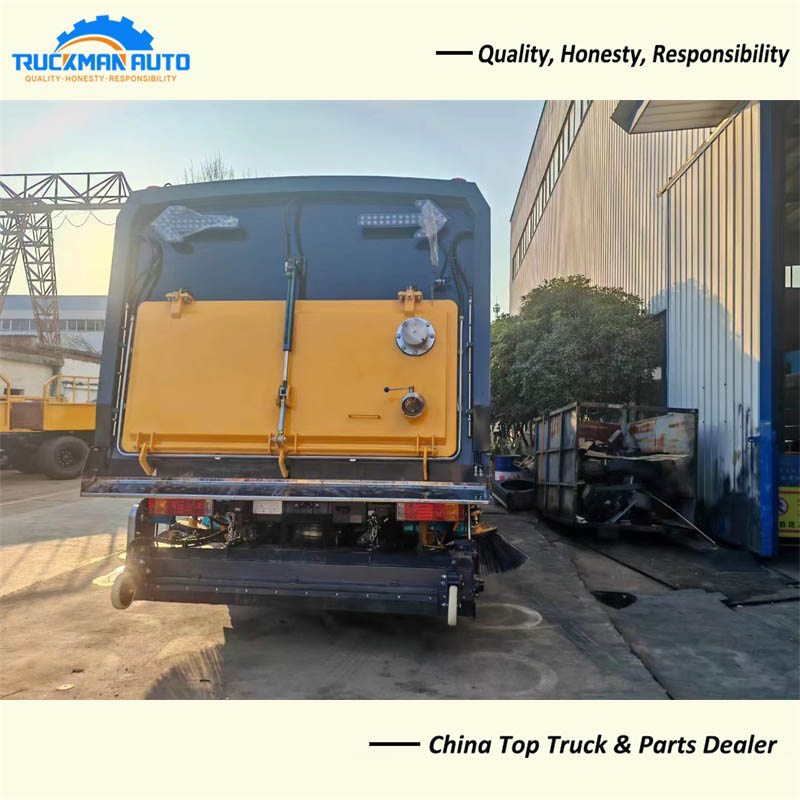

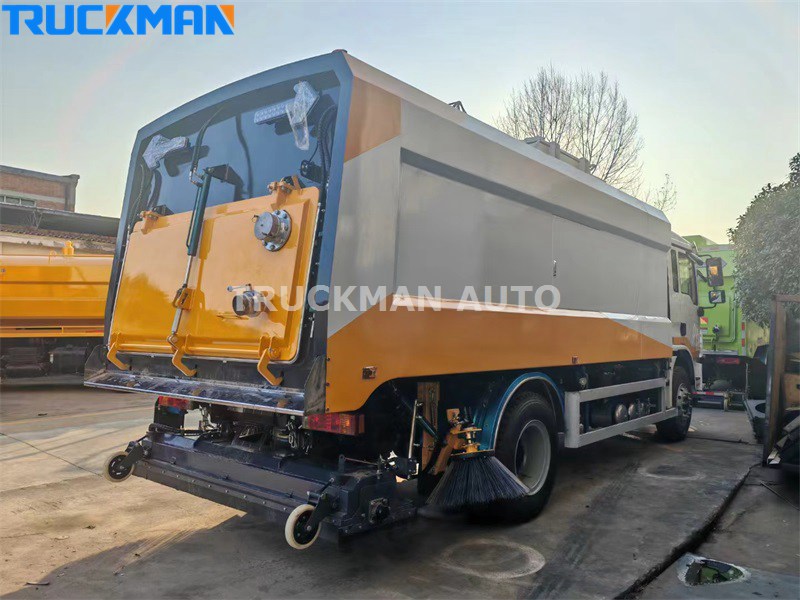

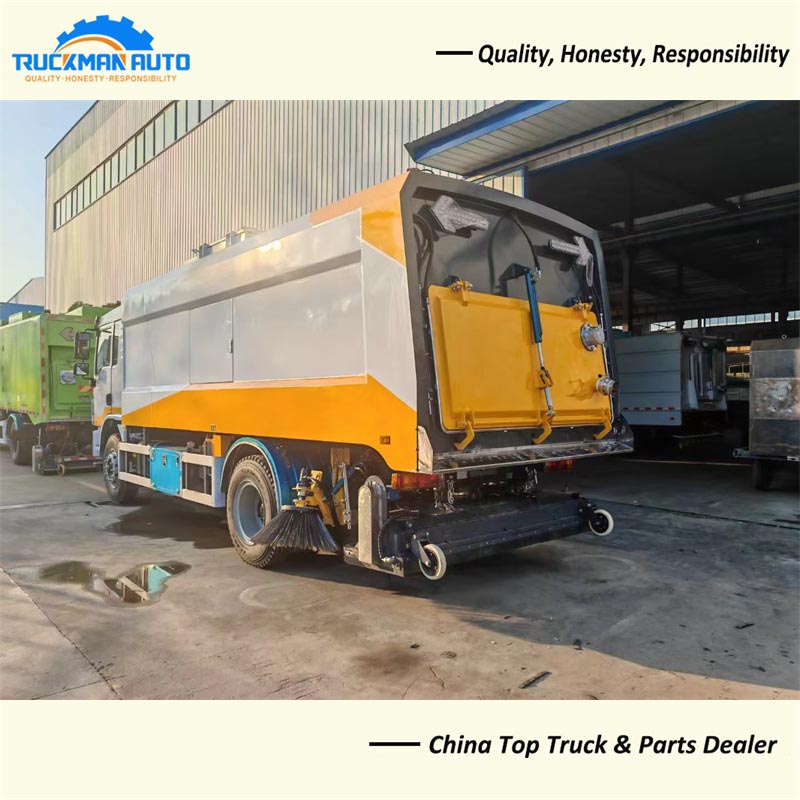

SHACMAN L3000 4X2 240HP Road Sweeper Truck Cargo Body

The cargo body of the sweeper truck is integrated by the upper garbage box and the lower fresh water box, including the inlet duct, filter, deflector cover, oil cylinder, air cylinder and other components. The front part of the box is affixed with environmentally friendly noise-reducing sound insulation layer. The filter screen controlled by cylinder is more convenient for washing and cleaning. Special treatment of the deflector cover is more wear-resistant. The clean water tank of the box is made of carbon steel, the thickness of the plate reaches 4mm, and the service life is longer.
