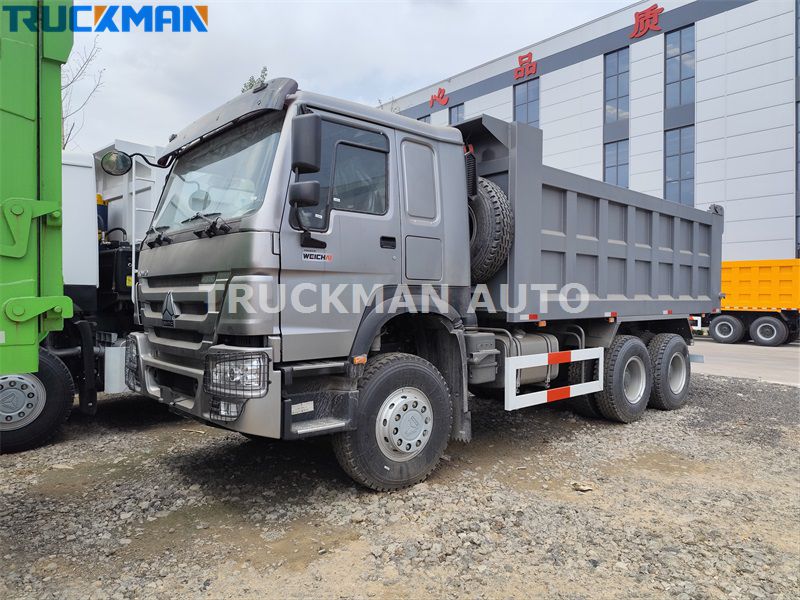

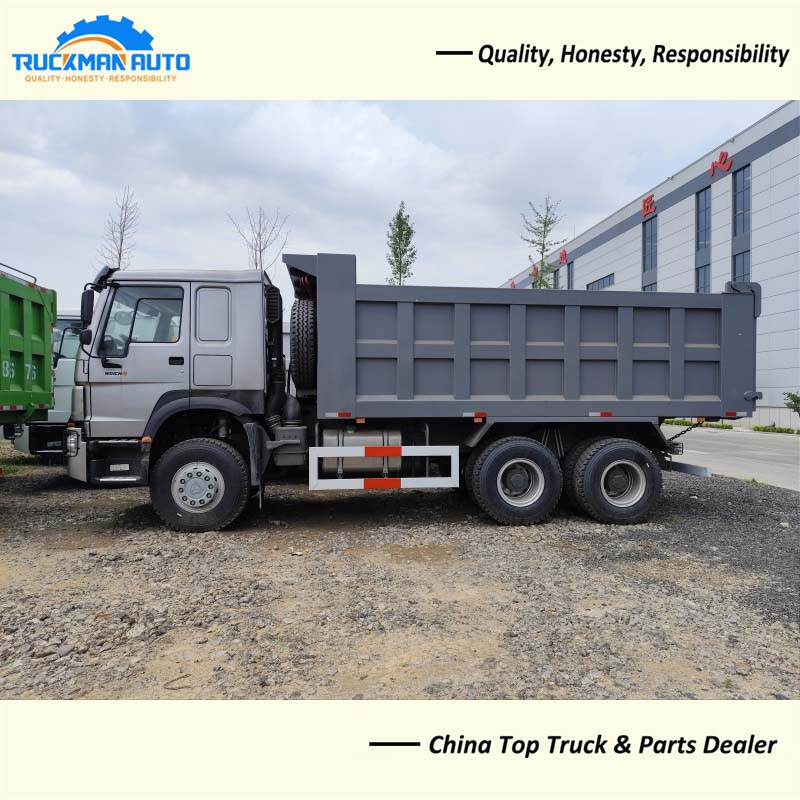

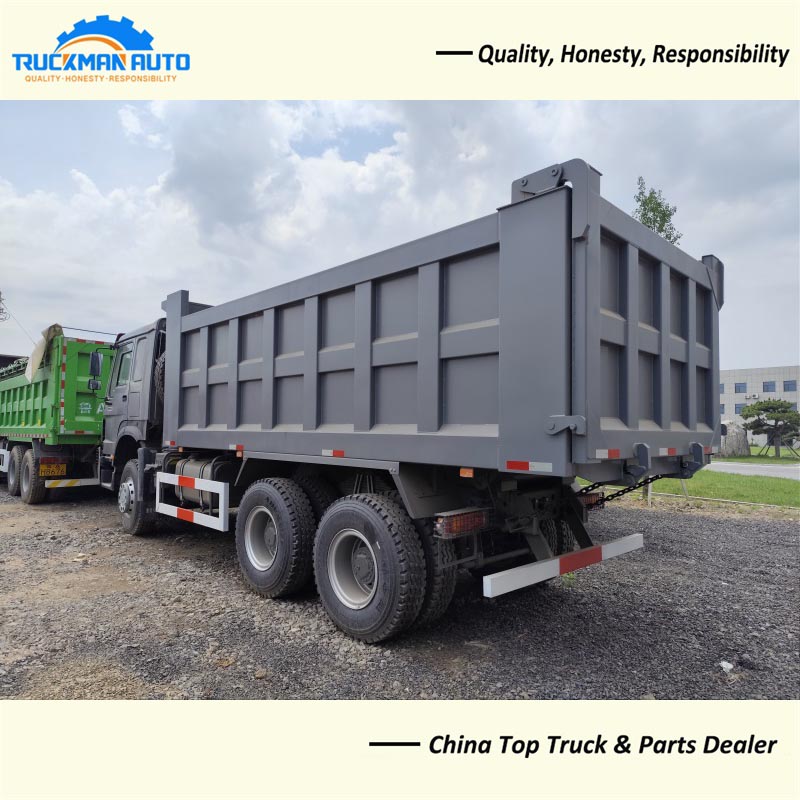

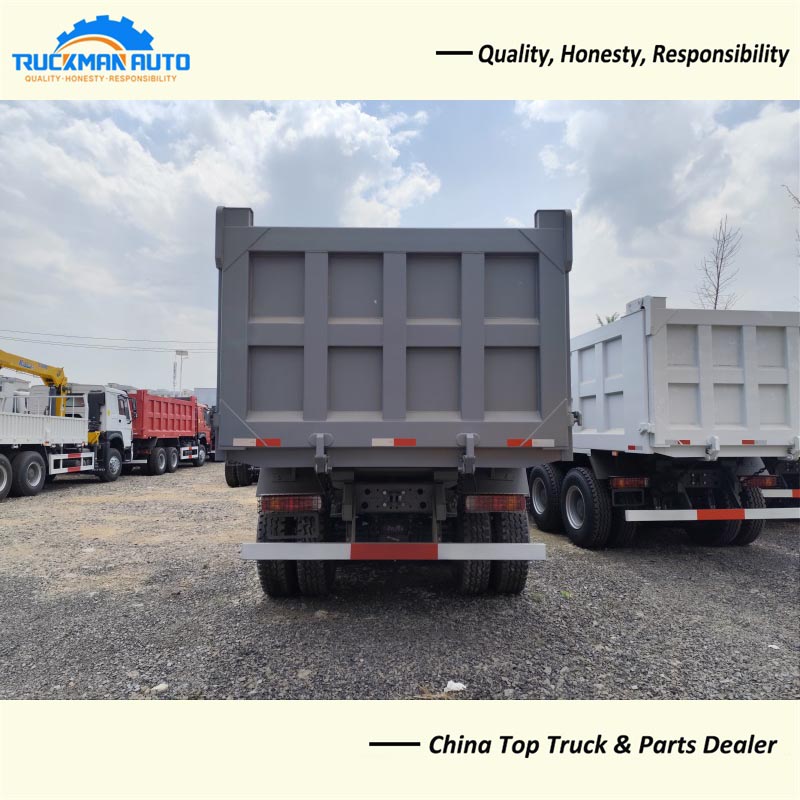

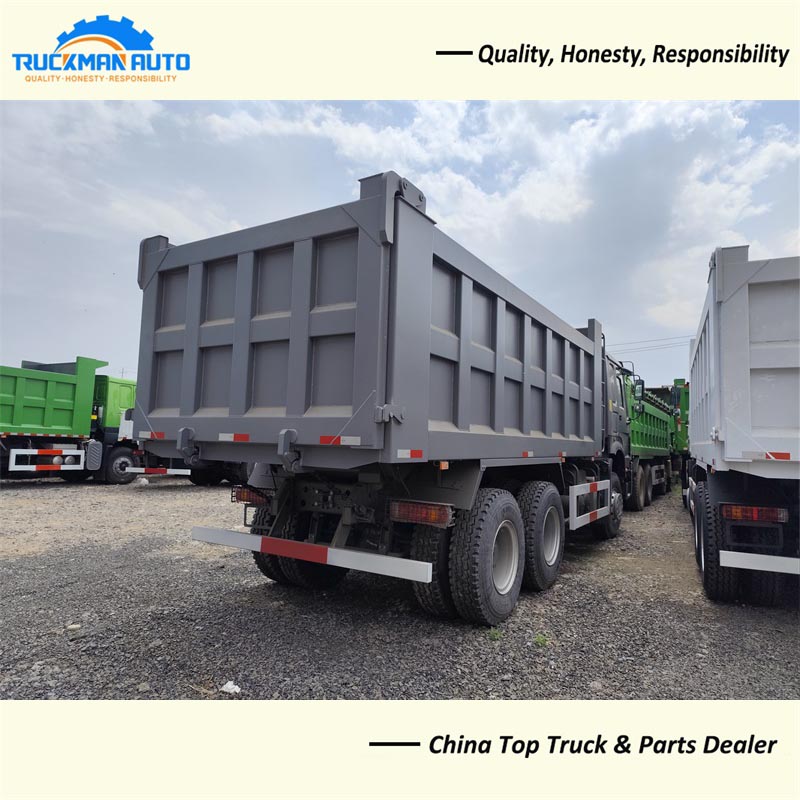

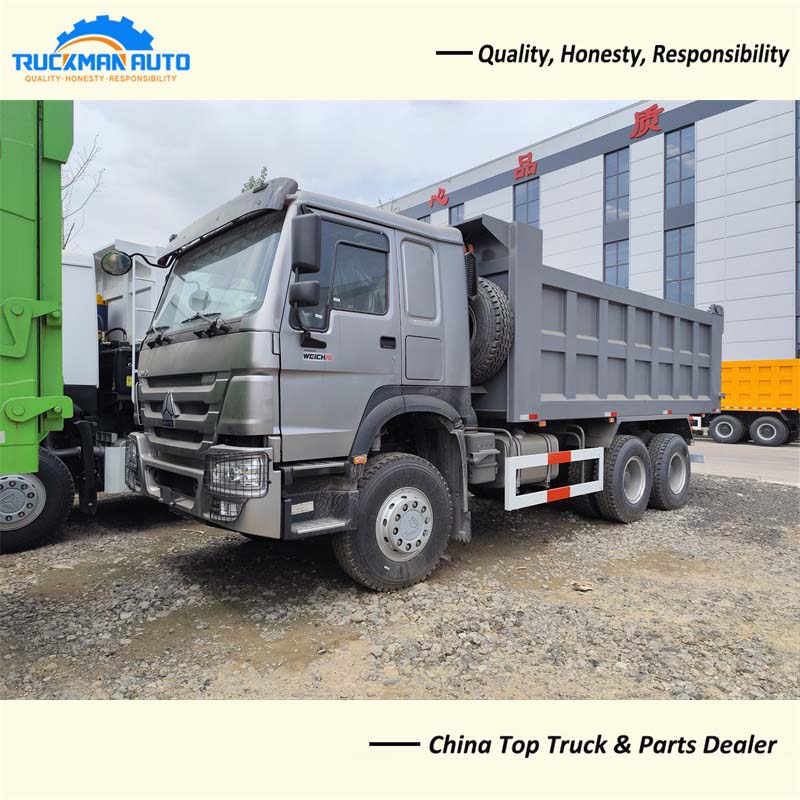

6X4 SINOTRUK HOWO 400HP Dumper Truck For Algeria

About 6X4 SINOTRUK HOWO 400HP Dumper Truck

SINOTRUK HOWO dumper truck can adopt the middle lift method or the front lift method. Compared with the horizontal lift, the front lift is simple, easy to maintain and more durable. However, the stability is worse than that of the middle lift. Generally, there are balance braces under the carriage. The mid-lift is cheap, has good stability when lifting, and can save space.

6X4 SINOTRUK HOWO 400HP Dumper Truck Specification

Engine: WP12.400E201, 400HP. Euro 2

Cabin: HW76,with one bed, A/C

Gearbox: HW19710+HW50, 10F & 2R, with PTO, manual gearbox

Drive Axle: HC16,2x16000kg,

Tire: 12.00R20, radial tyre, 10+1 pcs

Cargo Size:5600x2300x1500mm, Manganese plate

Fuel Tank: 300L

Dimension:  8600x2580x3430mm

6X4 SINOTRUK HOWO 400HP dumper truck specification only for your reference, we can manufacture other model dumper truck basic your request.

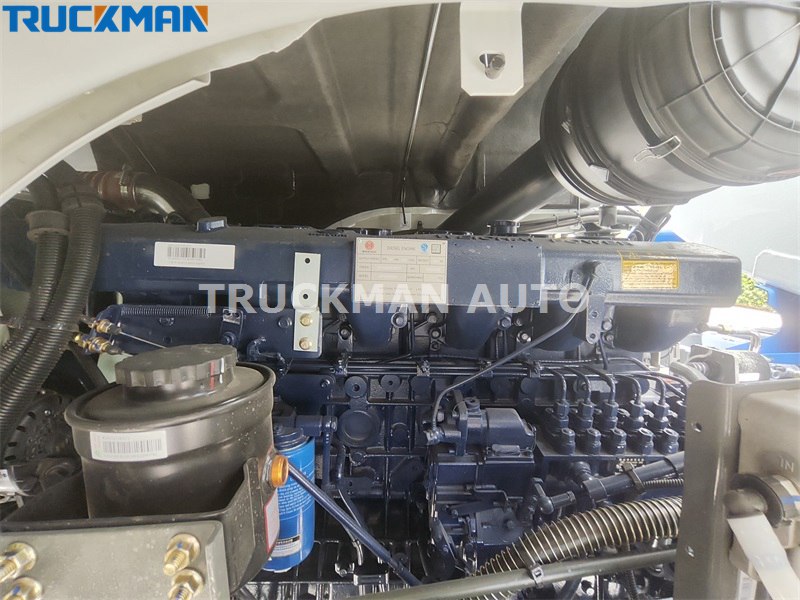

6X4 SINOTRUK HOWO 400HP Dumper Truck Engine

SINOTRUK HOWO dumper truck uses WEICHAI WP12.400E201 engine with a maximum power of 400 horsepower and a maximum torque of 1920 Nm. The engine's emission standard is Euro II emissions. WEICHAI engines have the characteristics of efficient combustion system, low noise design, high power, good efficiency and strong reliability. WEICHAI engines are not only used in trucks, but also in many excavators, loaders and cranes, providing reliable and powerful guarantee for the stable operation of various engineering machinery and equipment.

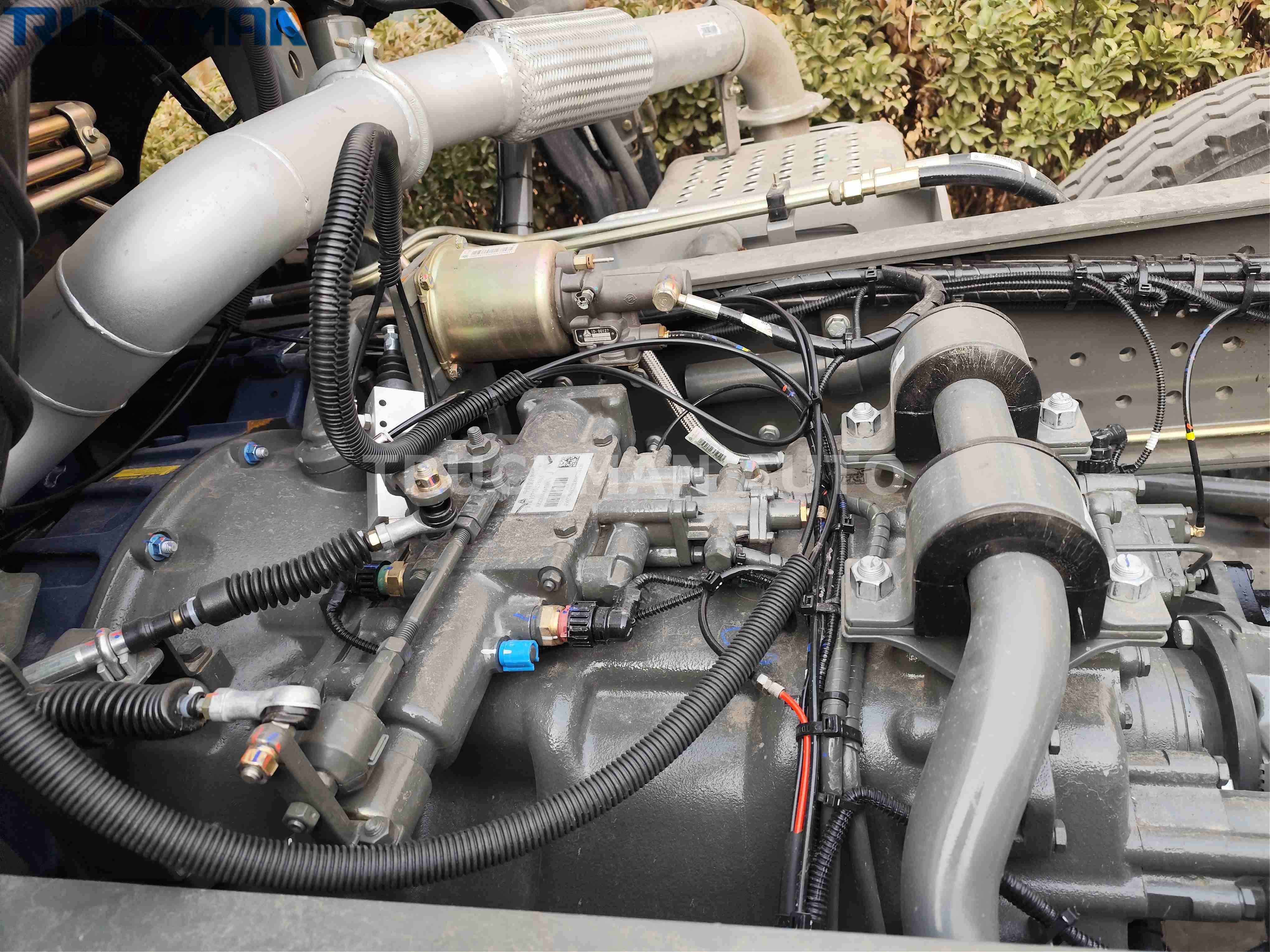

6X4 SINOTRUK HOWO 400HP Dumper Truck Gearbox

SINOTRUK HOWO dumper truck is equipped with HW19710 gearbox and HW50 power take-off. Customers can also choose HW70 power take-off. The main box of the HW19710 gearbox adopts a double intermediate shaft structure. The center of gravity of the gearbox is 155mm and the transmission torque is large. The casing of the gearbox is a cylindrical structure with high strength, durability and strong impact resistance.
