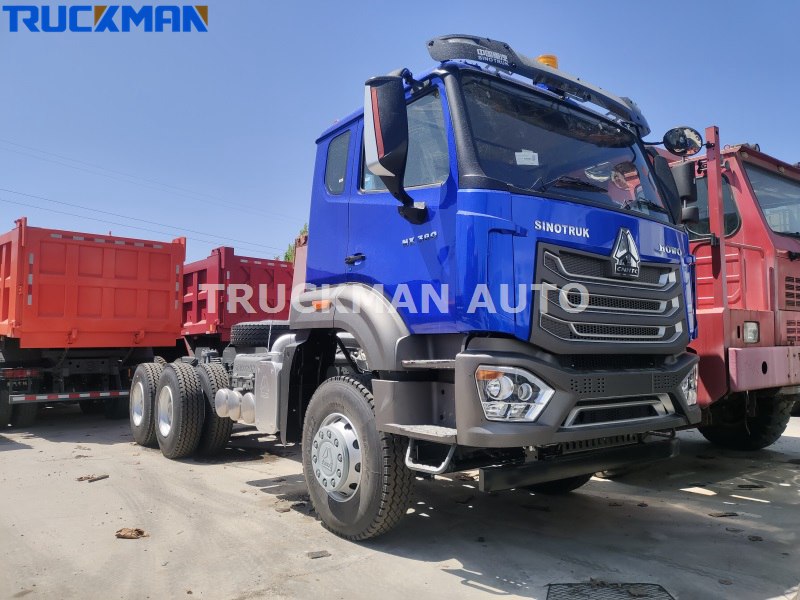

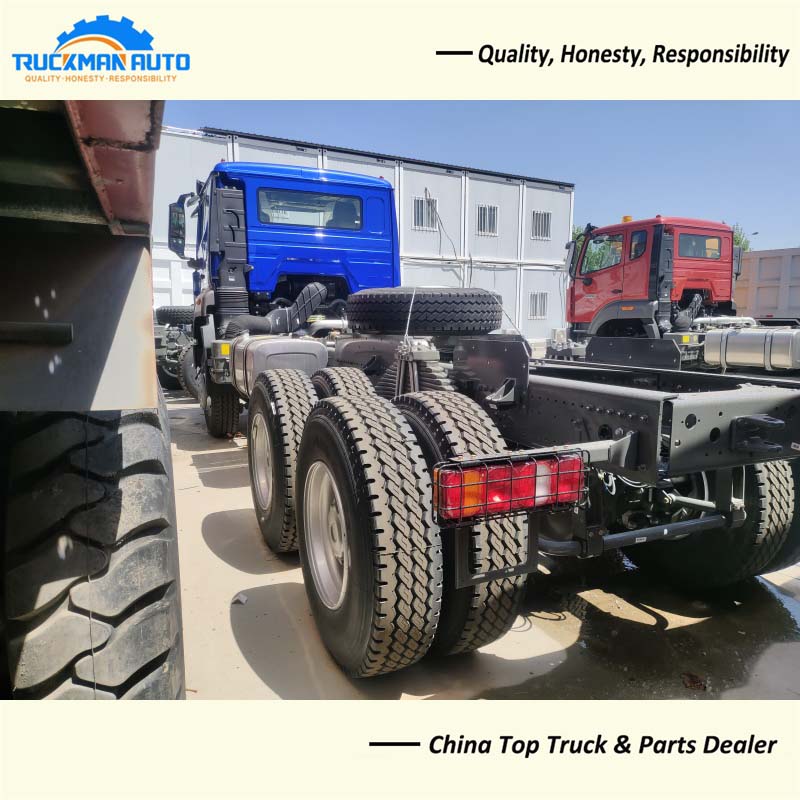

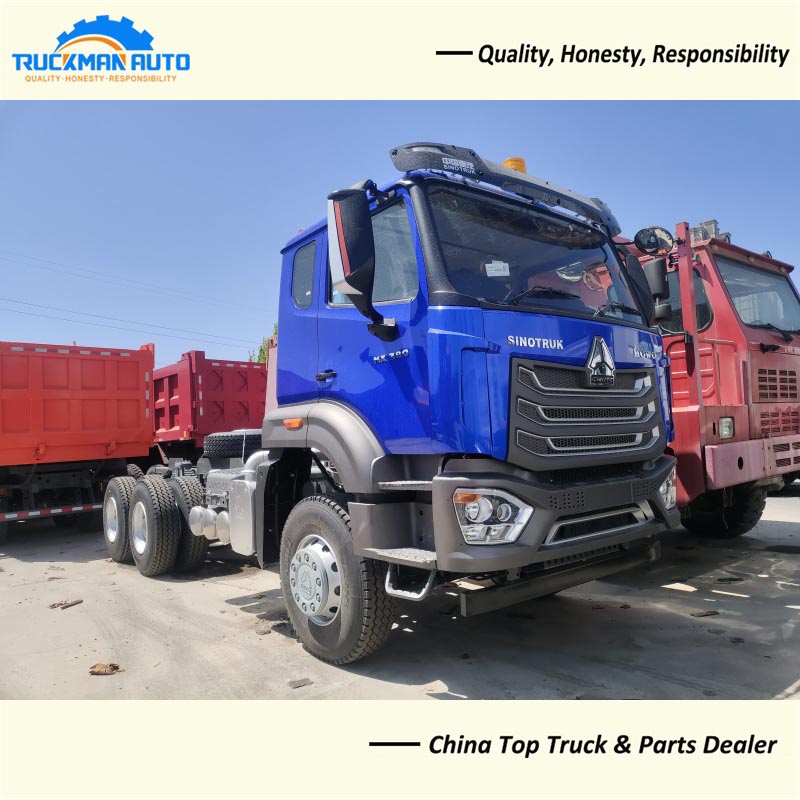

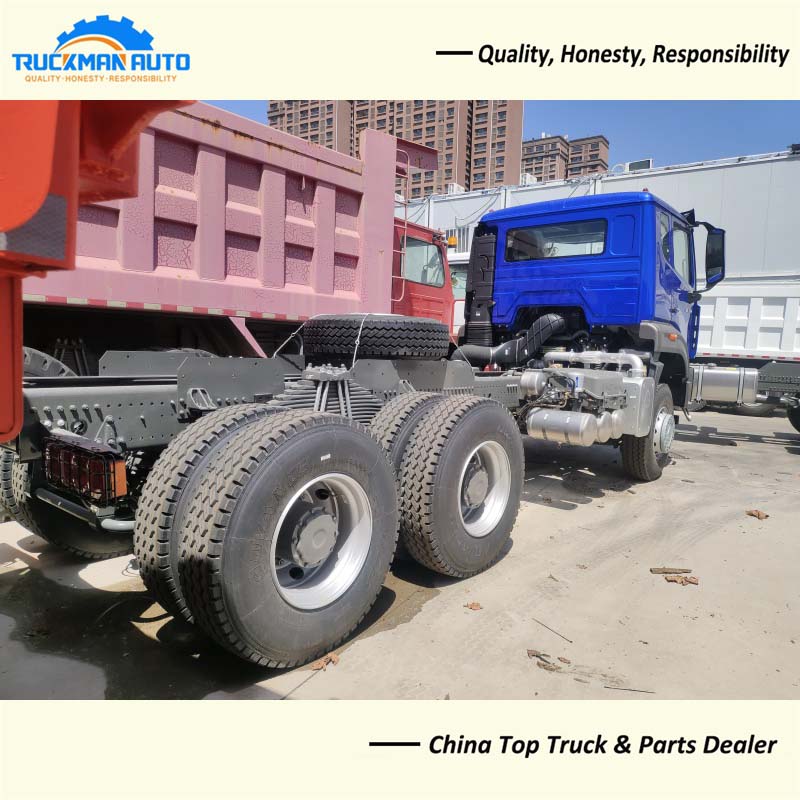

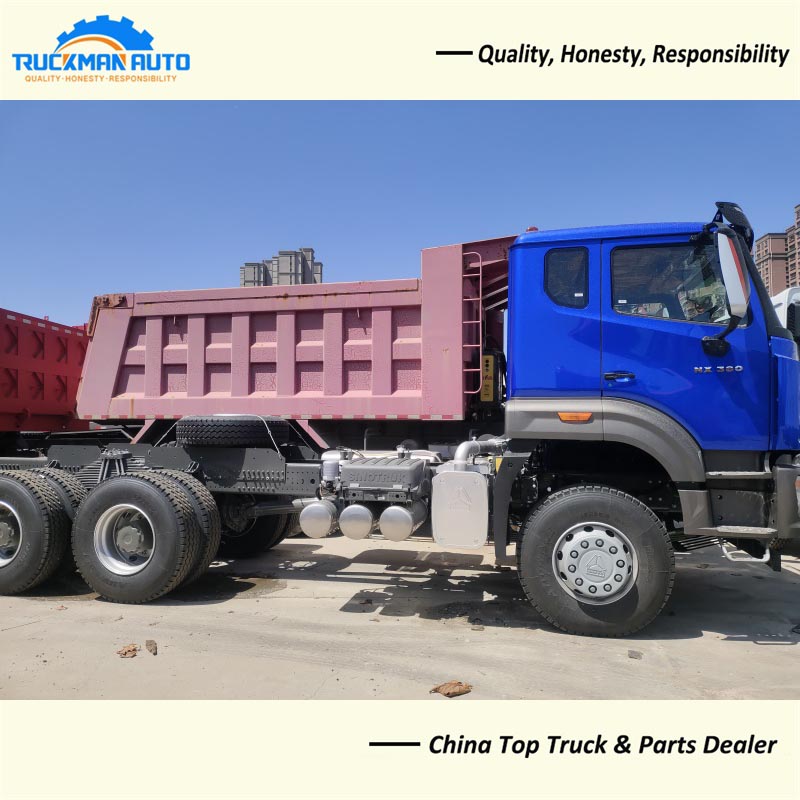

10 Wheels SINO TRUCK HOWO NX 380HP Tipping Truck Chassis For Guyana

About 10 Wheels SINO TRUCK HOWO NX 380HP Tipping Truck Chassis

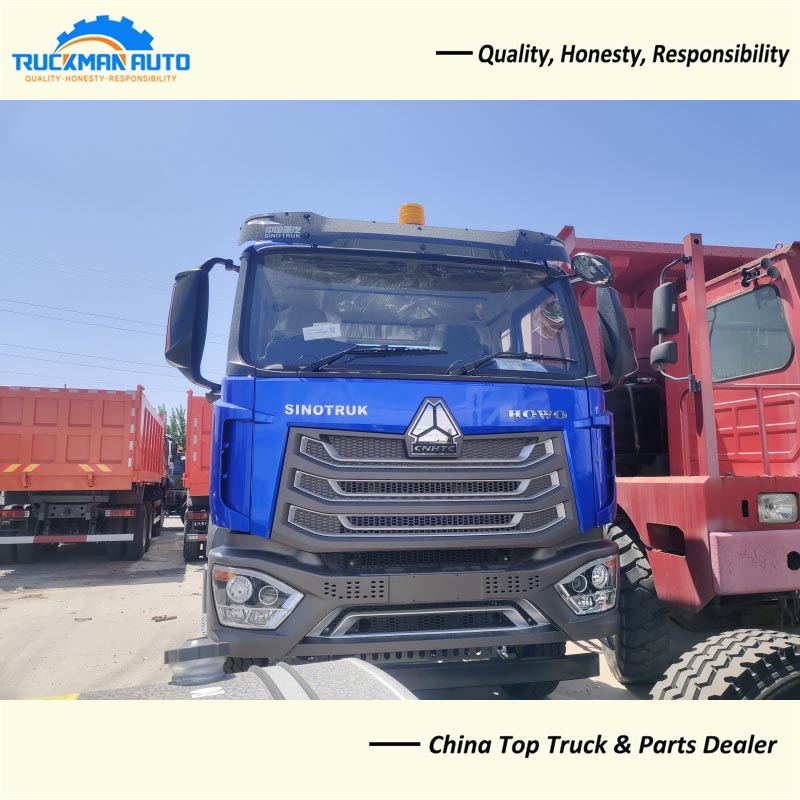

SINO TRUCK HOWO NX tipping truck chassis is a very cost-effective truck. Whether it is container transportation, dangerous goods transportation, or coal mine transportation, 10 wheels tipping truck has good performance. The SINO TRUCK tipping truck's cab adopts a four-point suspension airbag shock absorption design, so the driver will have a better driving experience.

10 Wheels SINO TRUCK HOWO NX 380HP Tipping Truck Chassis Specification

Engine: WP10.380E22, 380HP. Euro 2

Cabin: H77L,With one bed, A/C

Gearbox: HW19710+HW50, 10F & 2R, with PTO, manual gearbox

Drive Axle: MCP16ZG,2x16000kg,

Tire:  12.00R20, radial tyre, 10+1 pcs

Cargo Size: 20m3

Fuel Tank: 300L

Dimension:  8500x2580x3430mm

10 wheels SINO TRUCK HOWO NX 380HP tipping truck chassis specification only for your reference, we can manufacture other model tipping truck basic your request.

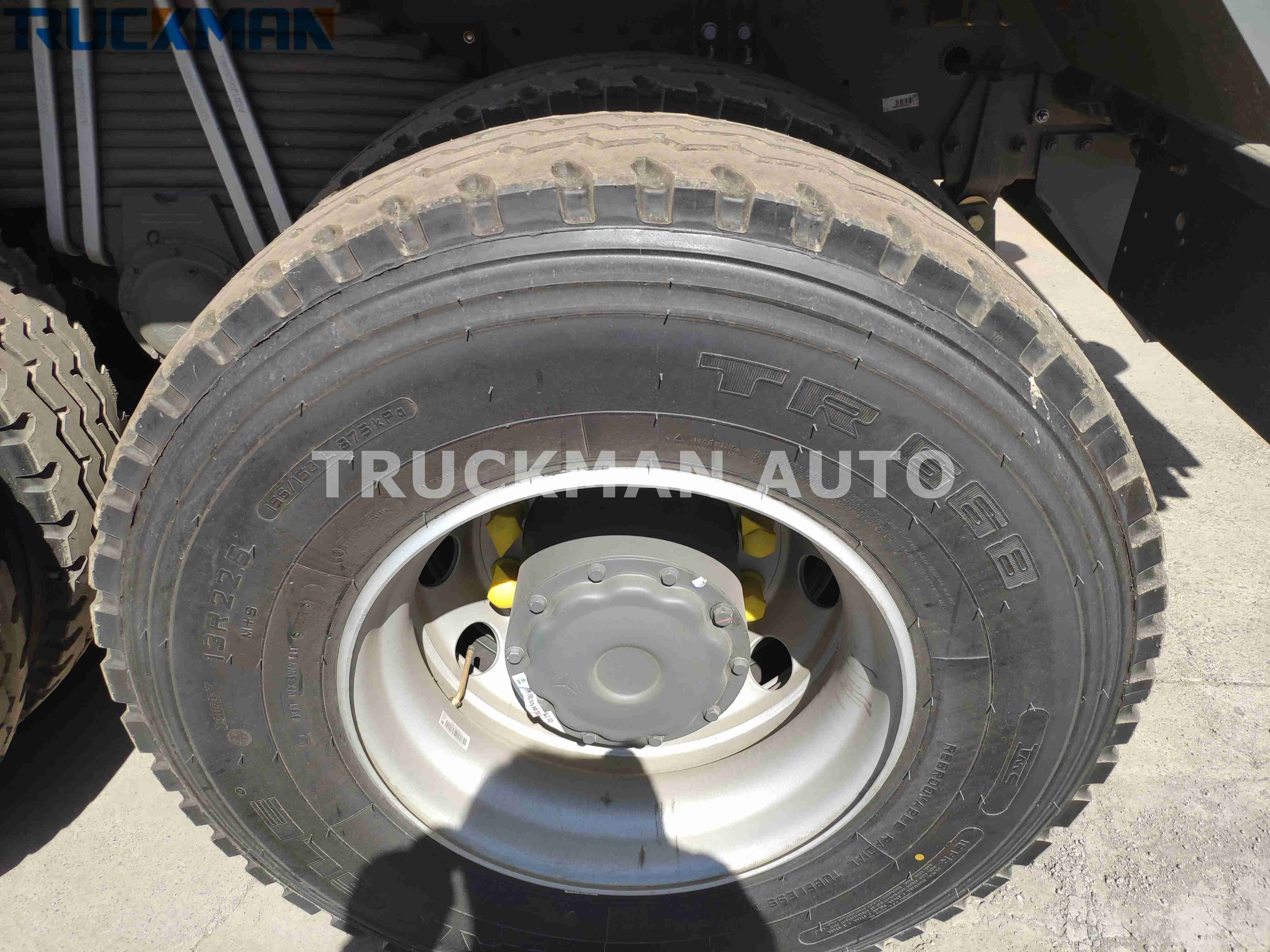

10 Wheels SINO TRUCK HOWO NX 380HP Tipping Truck Chassis 13R22.5 Tire

SINO TRUCK HOWO NX 10 wheels tipping truck chassis uses 13R22.5 tires, which have high safety, good heat resistance and strong load-bearing capacity. This tire is designed specifically for the heavy-duty engineering market. This tire adopts three zigzag groove design, middle block transverse groove design, closed shoulder and variable pitch pattern design, and has excellent overall performance.

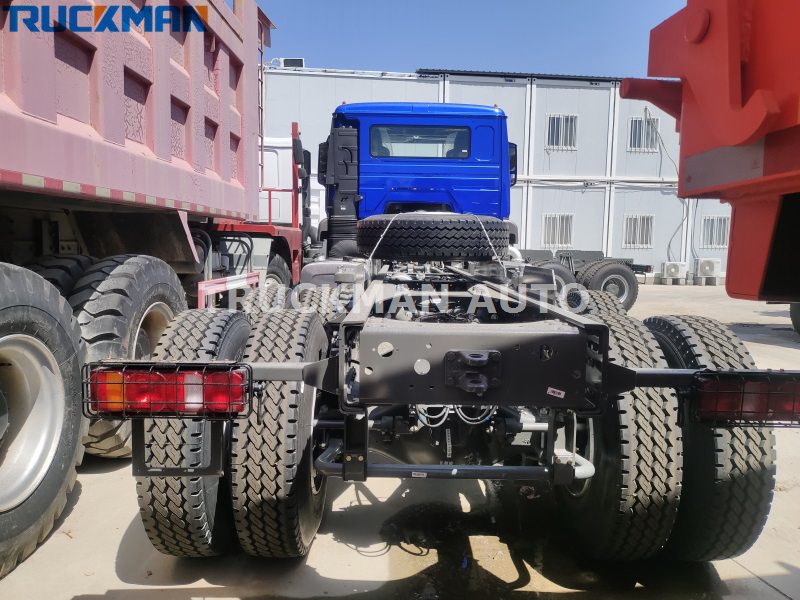

10 Wheels SINO TRUCK HOWO NX 380HP Tipping Truck Chassis Axle

SINO TRUCK HOWO NX tipping truck chassis uses the MCP16ZG drive axle. This drive axle is a technologically improved product based on the 16-ton cast double-stage reduction drive axle of the MAN axle platform. The large spherical diameter floating type strengthened inter-axle differential has stable working performance, reasonable load distribution of the wheel hub bearing, long life and high reliability. The whole bridge has advanced technology, strong carrying capacity and high reliability.
