340HP SHACMAN F3000 6X4 Tipper Truck

About 340HP SHACMAN F3000 6X4 Tipper Truck

SHACMAN F3000 tipper truck is equipped with WEICHAI WP10 series high horsepower engine, which has low speed, high torque, strong heavy duty climbing ability, and a maximum power of 340 horsepower. At the same time, it is equipped with a FAST gearbox, which is simple and convenient to operate, has fast shifting speed and strong power, which can reduce oil consumption and improve the economy of the entire vehicle.

340HP SHACMAN F3000 6X4 Tipper Truck Specification

Engine:  WP10.340E22, 340HP. Euro 2

Cabin:  F3000 middle long cabin,with one bed, A/C

Gearbox:  10JSD180+QH50, 10F & 2R, with PTO, manual gearbox

Drive Axle:  16 ton MAN double bridge

Tire:  12.00R20, radial tyre, 10+1 pcs

Cargo Size:  18m3

Fuel Tank:  380L

Dimension:  8500x2580x3450mm

SHACMAN F3000 tipper truck specification only for your reference, we can manufacture other model tipper truck basic your request.

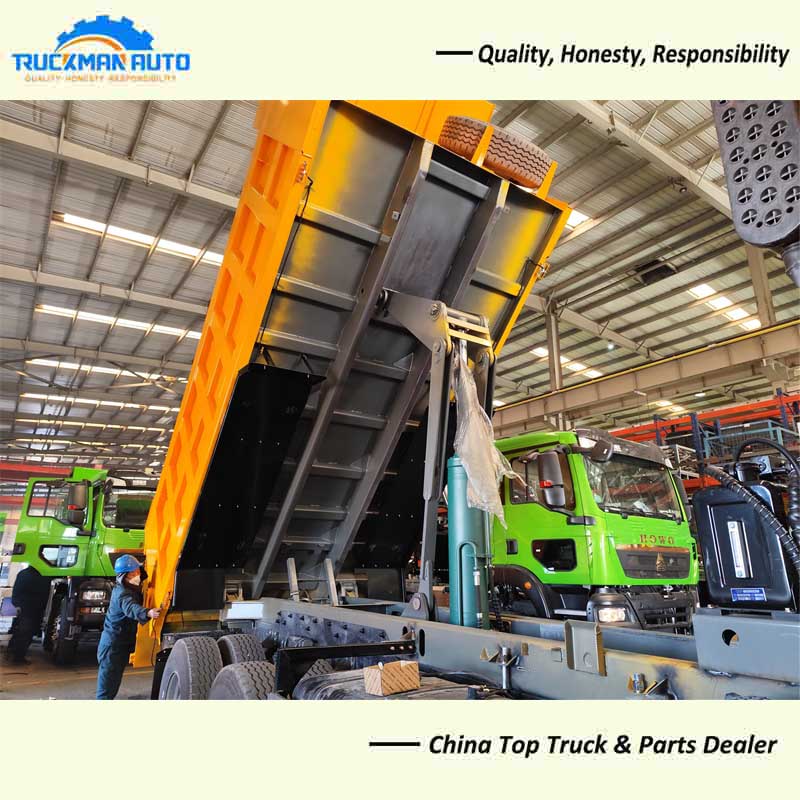

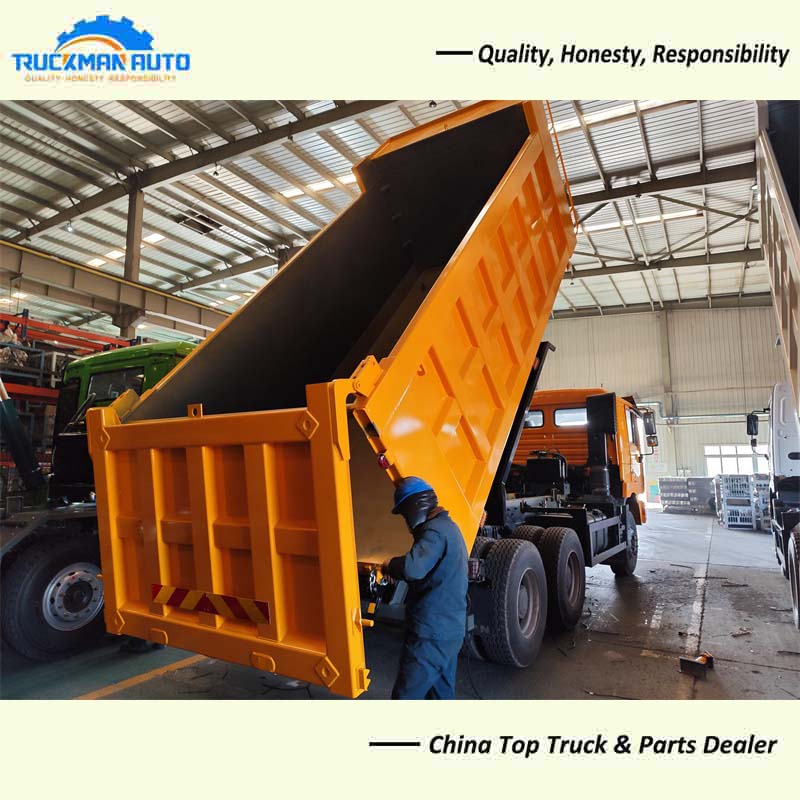

340HP SHACMAN F3000 6X4 Tipper Truck Lifting Cylinder

SHACMAN F3000 tipper truck adopts abdominal lifting method, which has low purchase price, good lifting stability and space saving. Another common lifting method is the front lift. Compared with abdominal lifts, this structure is simpler, easier to maintain, and more durable. But its purchase cost is relatively high.10 wheel dump trucks generally use the abdominal lift or front lift method, while 12 wheel dump trucks mostly use the front lift method. There are also side raises.

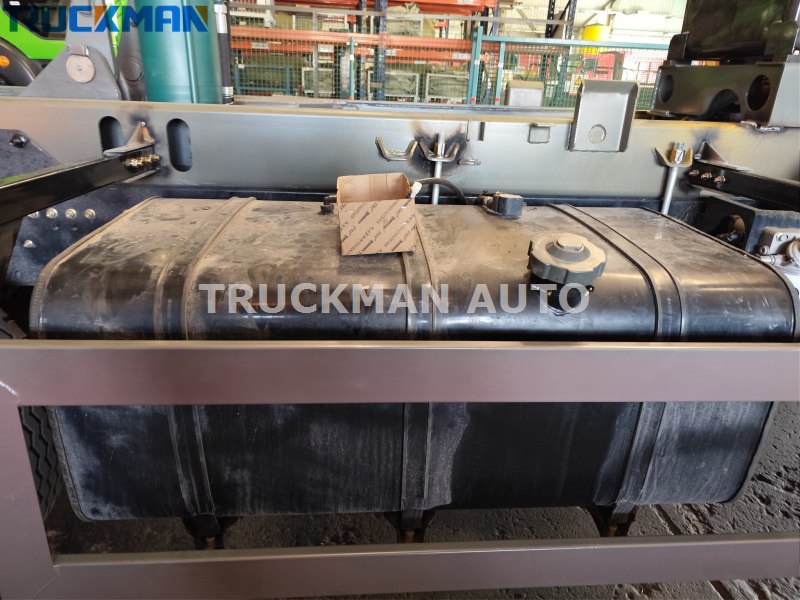

340HP SHACMAN F3000 6X4 Tipper Truck Fuel Tank

SHACMAN F3000 uses a large 380L fuel tank and has excellent battery life. If you want to transport it across over long distances, you can also choose to add auxiliary fuel tanks or switch to double fuel tanks. We can customize it according to your requirements. We can also replace it with an aluminum alloy fuel tank. Aluminum alloy fuel tanks are lighter in weight and have stronger corrosion resistance, so they are the choice of many customers.
