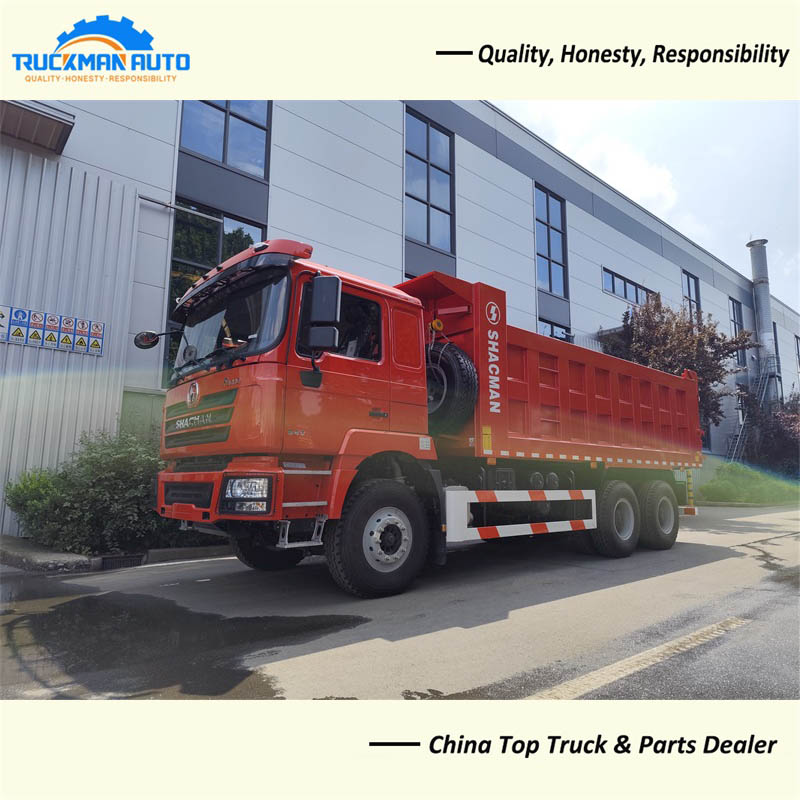

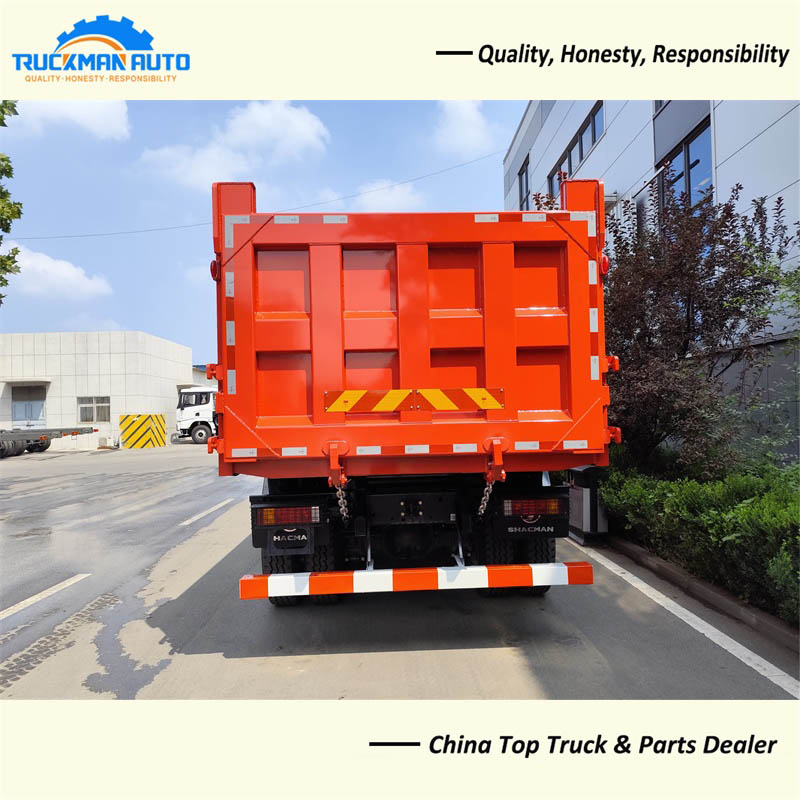

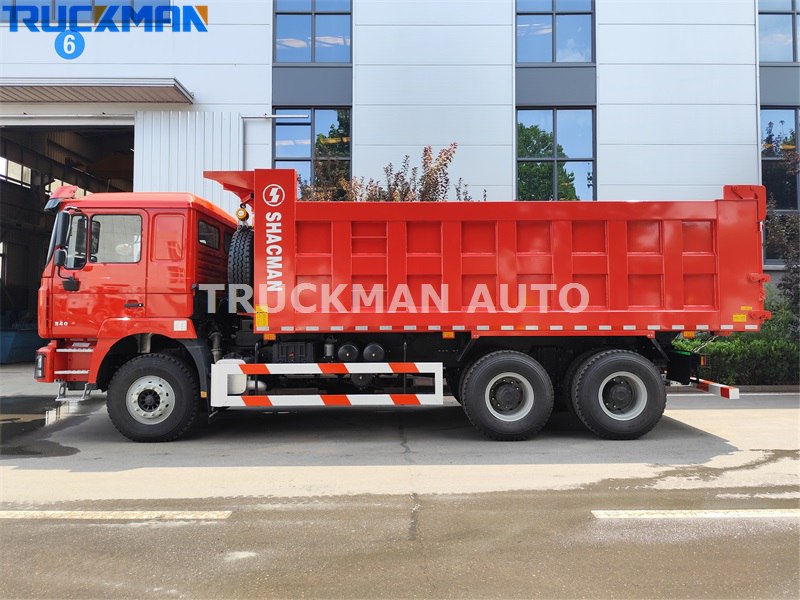

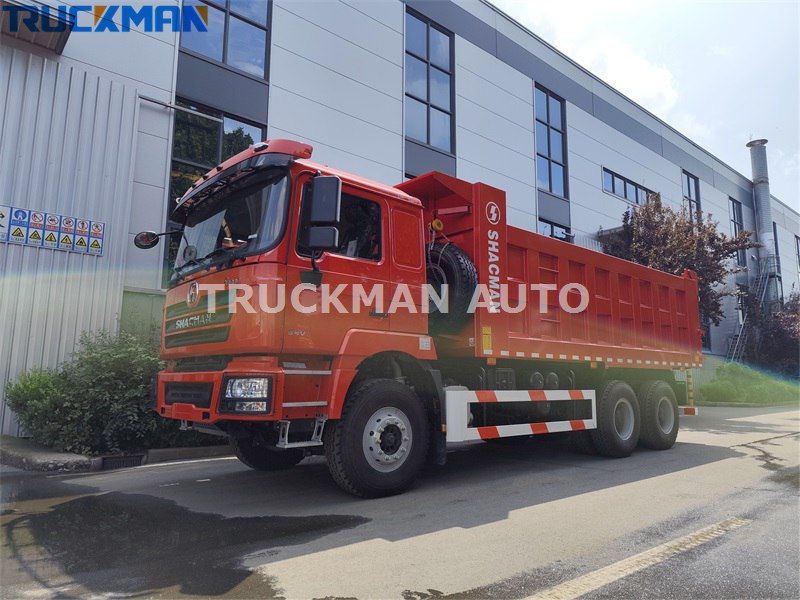

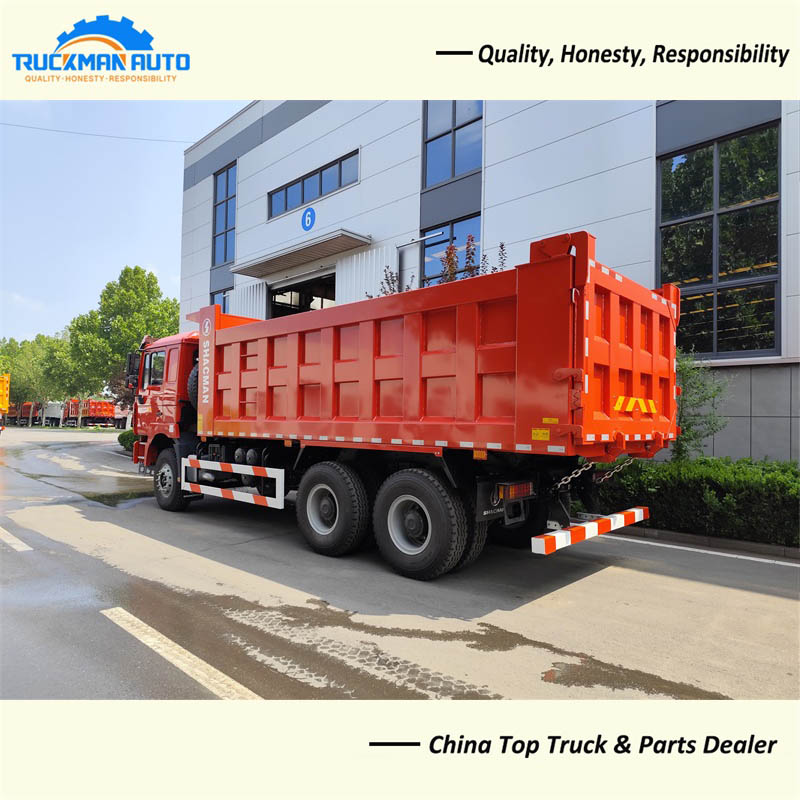

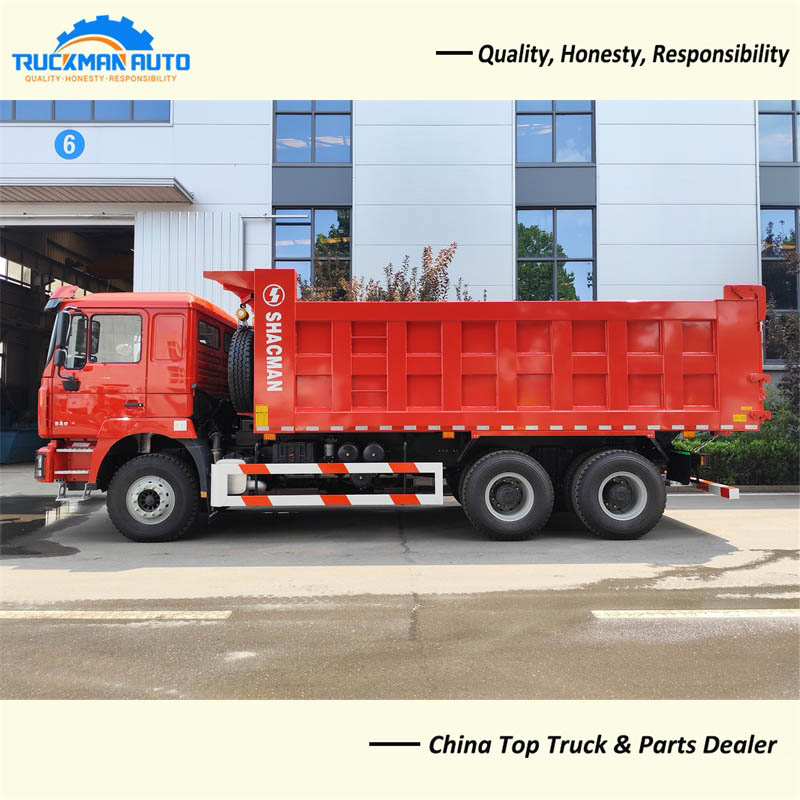

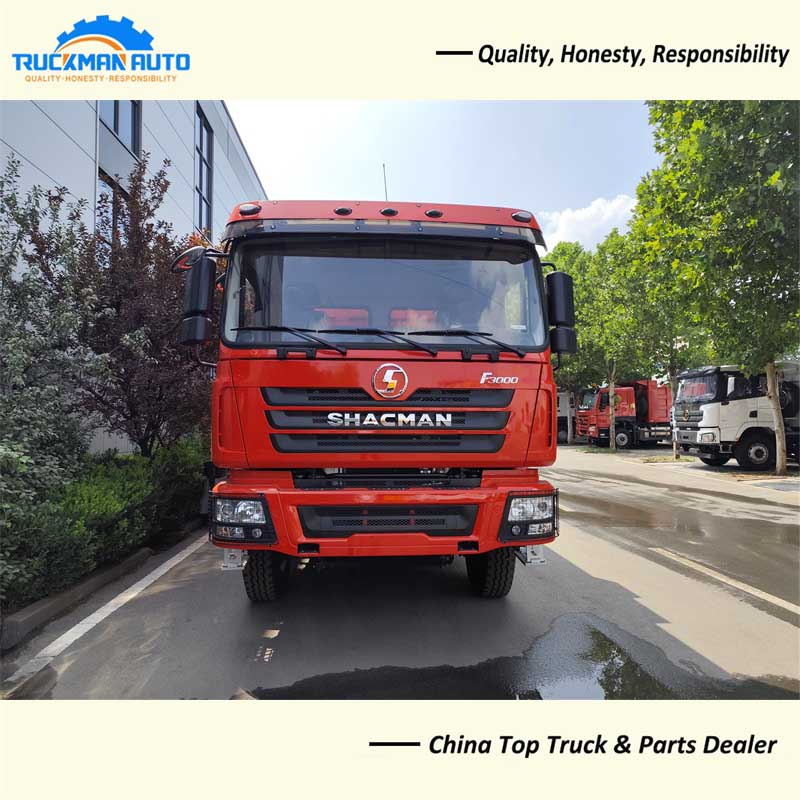

340HP SHACMAN F3000 6x4 10 Wheels Tipper Truck For Algeria

About 340HP SHACMAN F3000 6x4 10 Wheels Tipper Truck

SHACMAN F3000 tipper truck is lightweight, economical, practical, and strong, making it very suitable for efficient highway transportation of large volumes of coal, sand and gravel. SHACMAN F3000 tipper truck is loved by many customers for its lighter weight, higher transportation efficiency, safety and reliability. SHACMAN F3000 tipper truck has a variety of WEICHAI and CUMMINS power options for customers to choose from, meeting the needs of different work.

340HP SHACMAN F3000 6x4 10 Wheels Tipper Truck Specification

Engine: WP10.340E22, 340HP. Euro 2

Cabin: F3000 middle long cabin,with one bed, A/C

Gearbox: 10JSD180+QH50, 10F & 2R, with PTO, manual gearbox

Drive Axle: 16 ton MAN double bridge

Tire: 12.00R20, radial tyre, 10+1 pcs

Cargo Size: 5600x2300x1500mm

Fuel Tank:300L

Dimension:8500x2580x3430mm

340HP SHACMAN F3000 6x4 10 wheels tipper truck specification only for your reference, we can manufacture other model tipper truck basic your request.

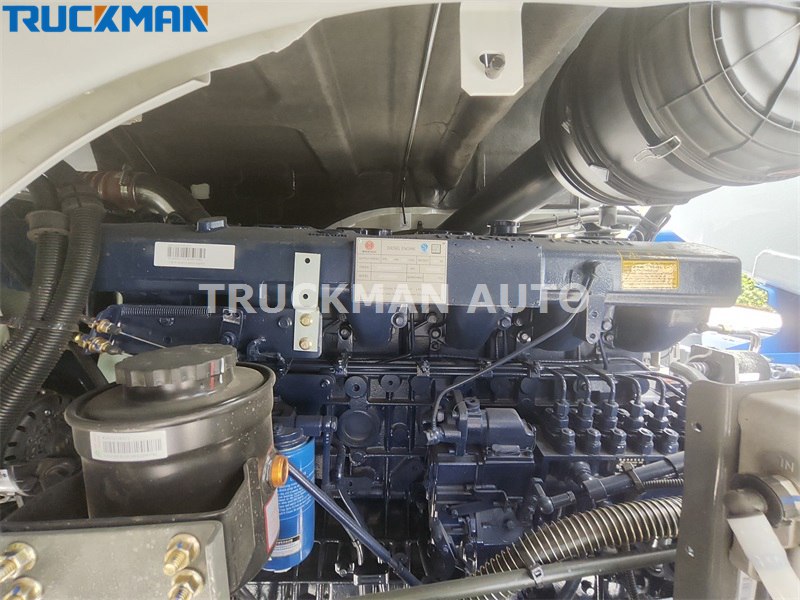

340HP SHACMAN F3000 6x4 10 Wheels Tipper Truck Engine

The 10 wheels tipper truck uses a WEICHAI 340 horsepower engine and a FAST 10-speed gearbox. The combination of the HANDE 16T MAN bipolar drive axle and the widened variable-section brake shoe friction plate makes the transmission efficiency high and the failure rate low. The 10 wheels tipper truck not only has strong climbing ability and fast acceleration, but also has large torque, strong climbing power without downshifting, and high attendance rate.

How To Maintain Dump Trucks

For daily maintenance, first check the oil tanks in the engine compartment and replenish the oil in time. Check whether the chassis has scratches. If so, repair them in time and do a good job of sealing and rust prevention. Battery maintenance is very important. If the truck has not been used for a long time, be sure to check whether the battery is in good working condition before using it. Timely replacement of high-quality air filters is an important part of vehicle maintenance. The fuel filter should also be replaced regularly to prevent the filter element from being blocked.
