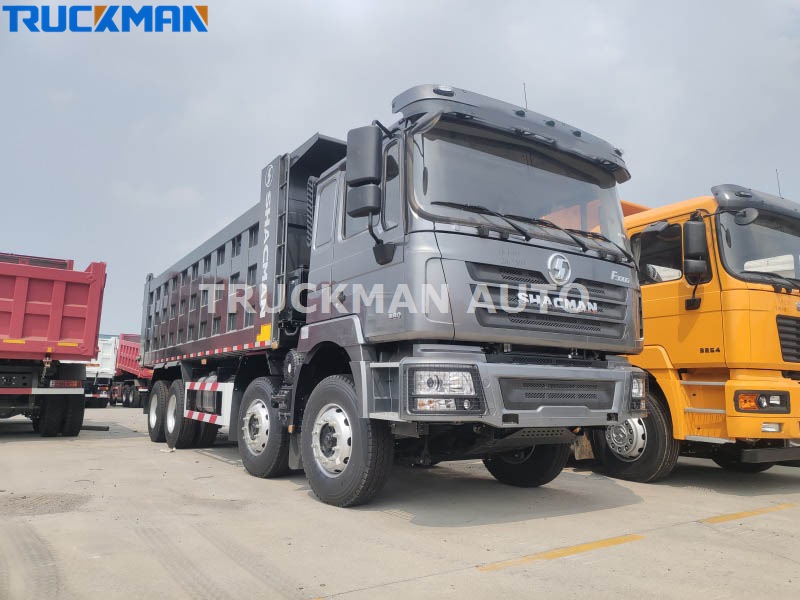

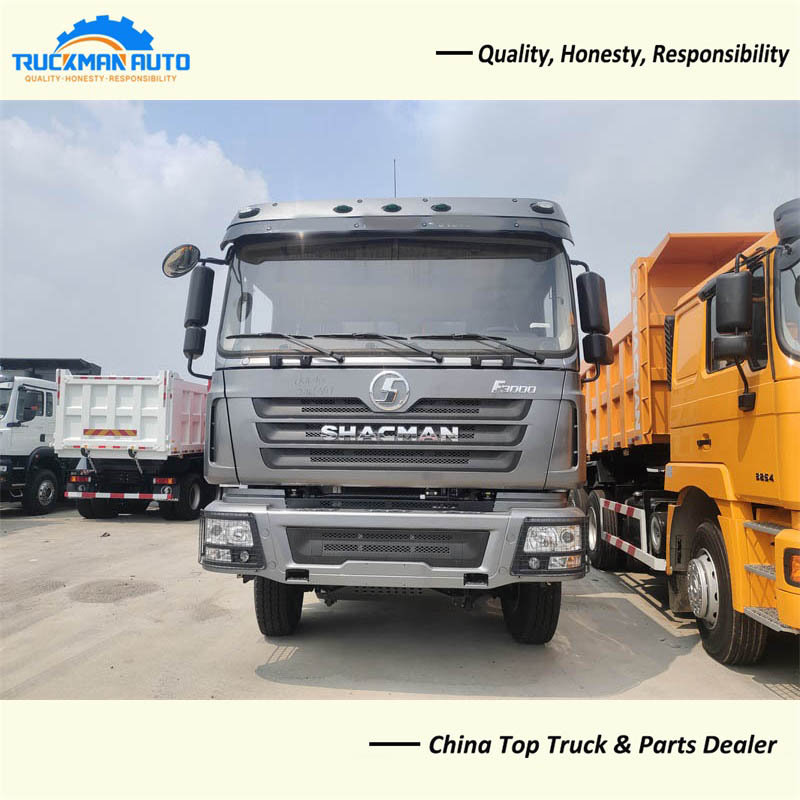

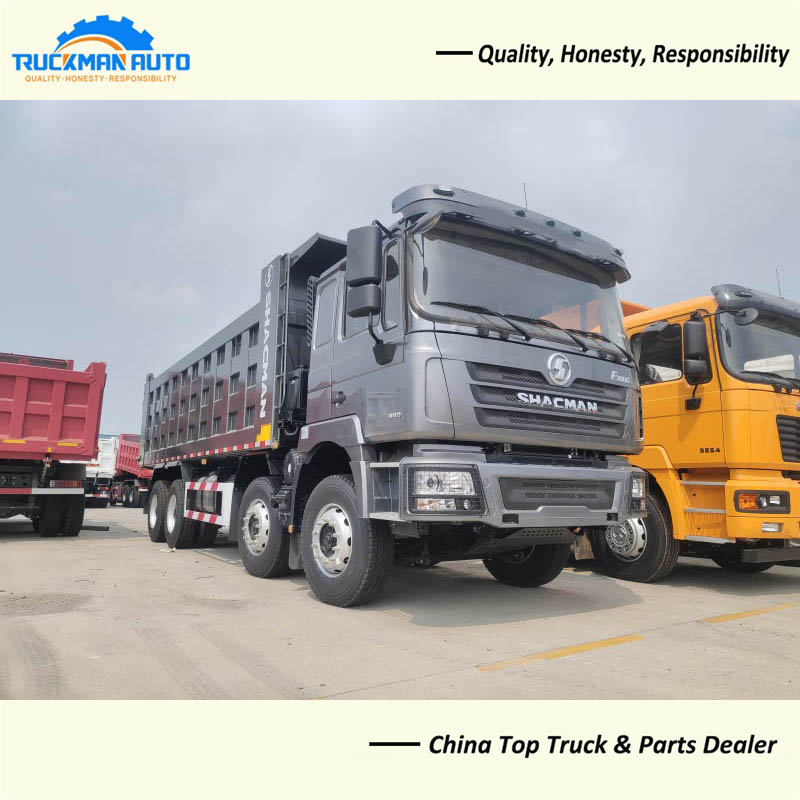

8x4 380HP SHACMAN F3000 45 Tons Tipper Truck For Angola

About 8x4 380HP SHACMAN F3000 45 Tons Tipper Truck

The cab and axle of the 380HP tipper truck adopt German MAN technology. The power is equipped with WEICHAI WP10.380E22 engine with an output power of 380 horsepower. The gearbox adopts FAST 10JSD180 iron case gearbox with a total of 10 gears. The front axle of the 380HP tipper truck is 7.5T, and the rear axle is equipped with a 16T double-stage reduction axle. It is also equipped with a front cylinder lift, a 12.00R20 steel tire and a 300L aluminum alloy fuel tank.

8x4 380HP SHACMAN F3000 45 Tons Tipper Truck Specification

Engine: WP10.380E22, 380HP. Euro 2

Cabin: F3000 middle long cabin,with one bed, A/C

Gearbox: 10JSD180+QH50, 10F & 2R, with PTO, manual gearbox

Drive Axle: 16 ton MAN double bridge

Tire: 12.00R20, radial tyre, 12+1 pcs

Cargo Size: 7300x2300x1500mm

Fuel Tank:300L

Dimension:10500x2580x3430mm

380HP SHACMAN F3000 45 tons tipper truck specification only for your reference, we can manufacture other model tipper truck basic your request.

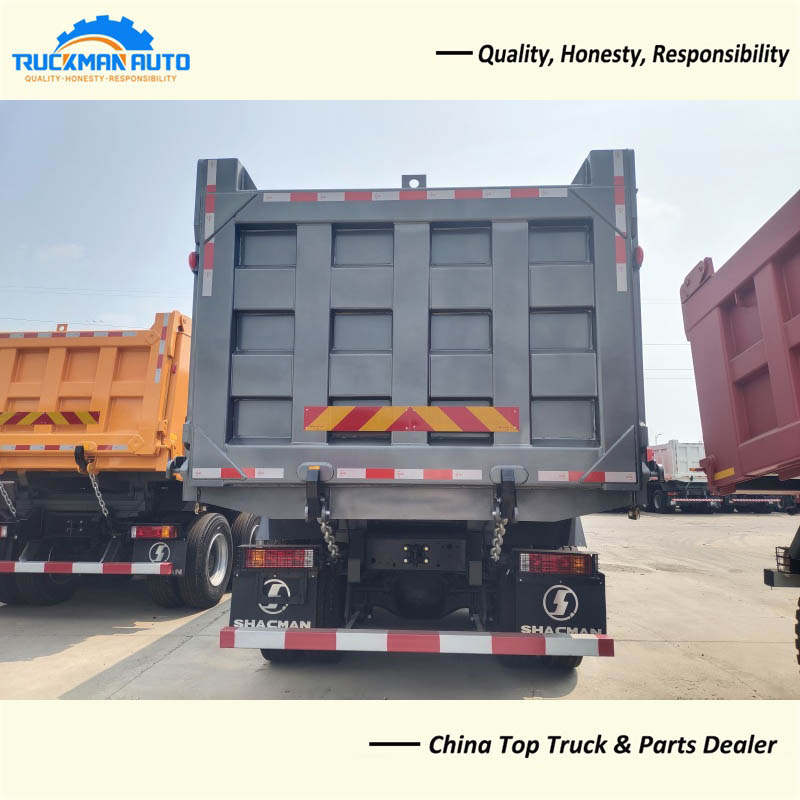

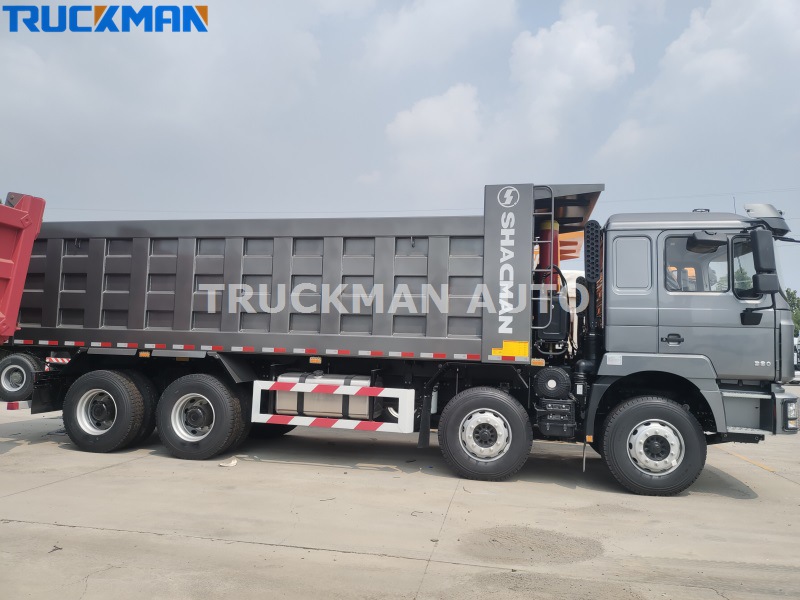

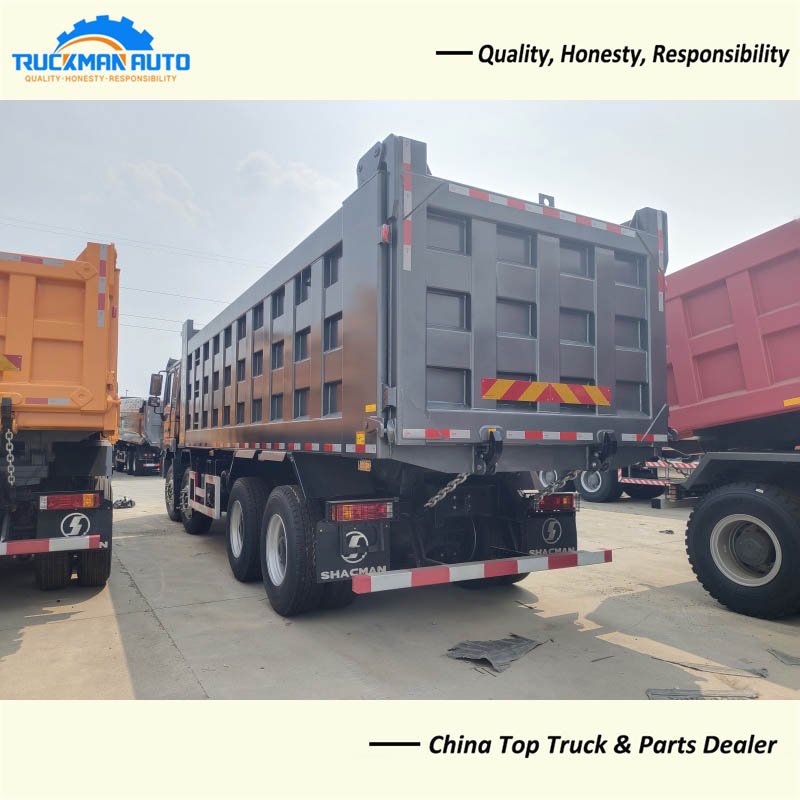

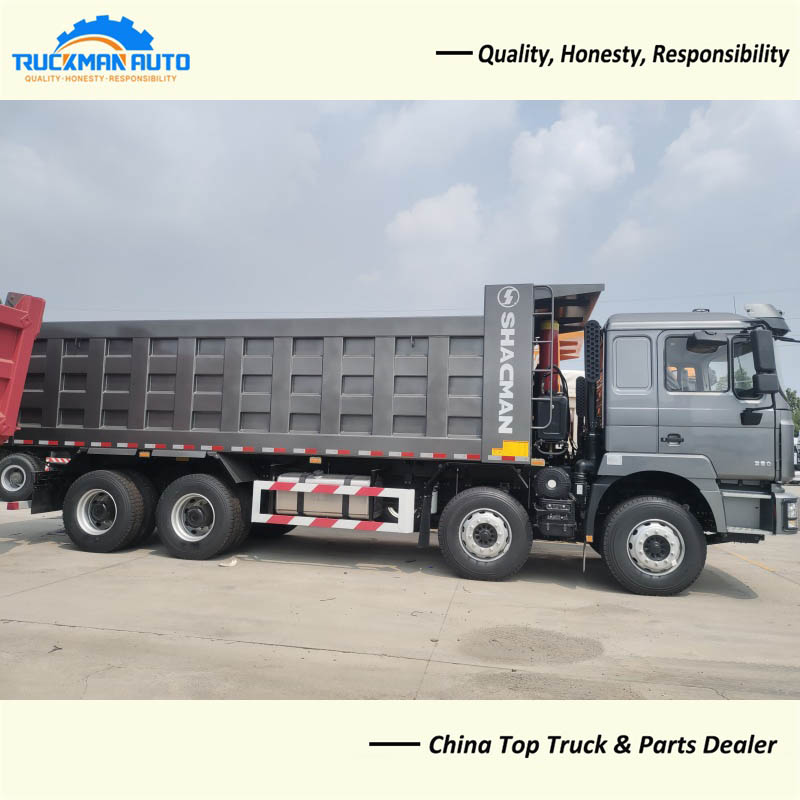

8x4 380HP SHACMAN F3000 45 Tons Tipper Truck Cargo Box

TThe SHACMAN F3000 tipper truck uses a tic-tac-toe-shaped cargo box. The design of the side reinforcement ribs increases the load-bearing capacity of the cargo box. Through its reasonable layout and shape design, the ability of the cargo box structure to resist deformation is enhanced by increasing the cross-sectional inertia moment of the structure. It effectively disperses the load, improves the rigidity, and reduces stress concentration. The cargo box is not easy to break or expand, thereby extending the service life of the cargo box. The reinforcement rib design also improves the overall aesthetics of the cargo box.

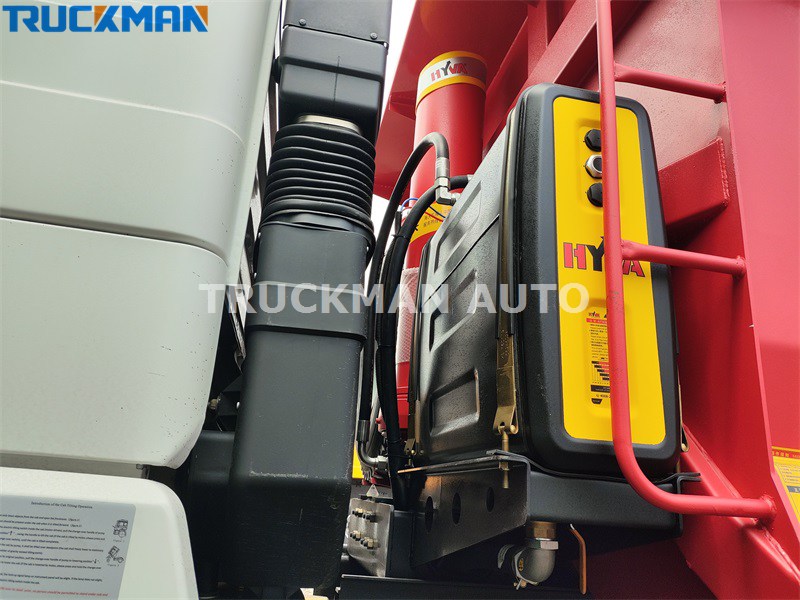

The Purpose Of Lifting Cylinder

SHACMAN F3000 tipper truck uses a front-top hydraulic lifting cylinder. This hydraulic cylinder has a simple structure, reliable performance, and is very easy to operate. Due to its simple structure and good stability, it is also a lifting method commonly used by many dump truck products. Let's take HYVA's front top cylinder as an example. At present, domestic brands that use HYVA cylinders include SINOTRUK, SHACMAN, SAIC Hongyan and other dump truck products, and the models used are very wide.
