Oil Bath Air Filter Instructions

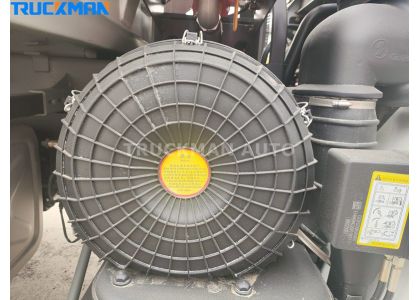

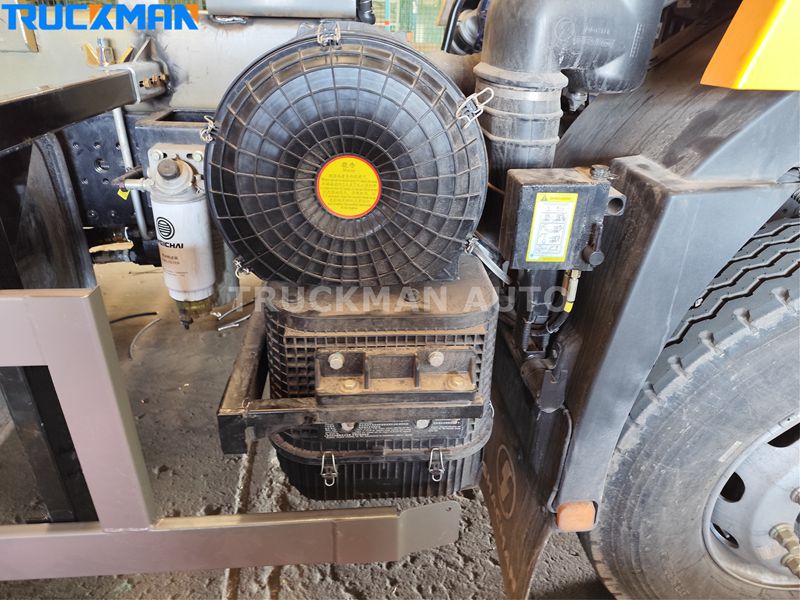

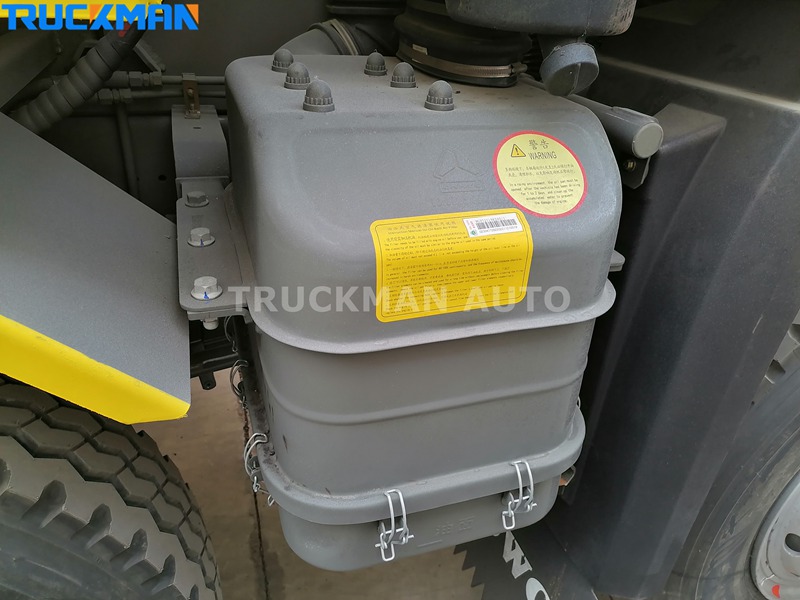

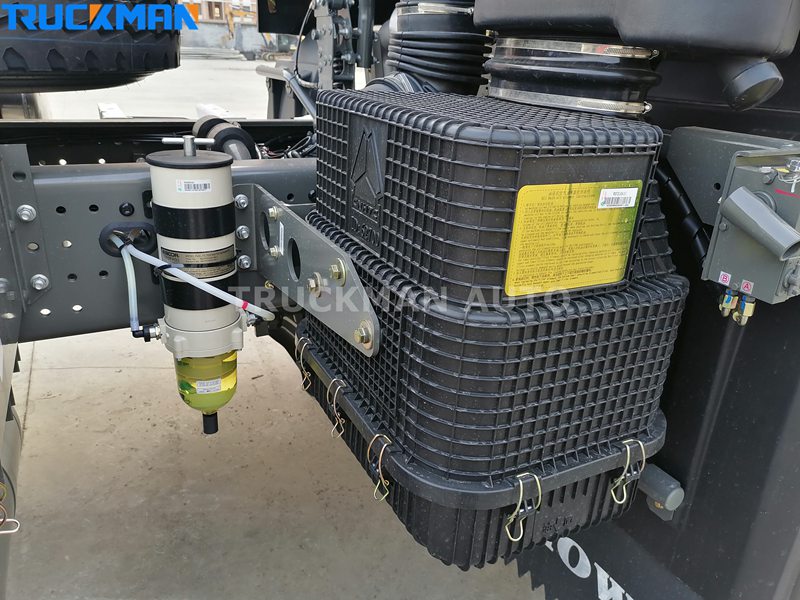

It is common to see oil bath air filters installed on some vehicles, such as dump truck, tractor truck etc. Its main purpose is to filter impurities and particles in the air and protect the engine from dust and pollutants. It is very suitable for some harsh working conditions, such as dusty construction sites, mining areas, deserts and so on. Its working principle is to use the oil-impregnated lubrication and filtration way, the particles in the air will be retained in the filter element, and at the same time to keep the air smooth and unobstructed. This post will show you how to use oil bath air filters properly.



1. No machine oil was filled in before the vehicles handed over.



2. Volume of the oil should not exceed the prescriptive value, 4L.



3. Generally the air cleaner could work for 80-150h continuously.





4. Under extremely bad conditions, it is necessary to check and clean the air cleaner every day.



5. The shell-to-bottom shell connection pull hooks need to be checked for looseness on a daily basis.



6. Machine oil has to be filled in before the vehicles run in business. the viscosity should be similar to the engine oil being used.





7. To replace the filter element, remove the oil pan, then remove the nuts at the bottom of the upper and lower filters respectively.



8. If the machine oil doesn't flow easily when shaking the bottom shell, the bottom part be cleaned and the machine oil should be replaced.



9. When the air is moist and it's rainy, be sure to remove the oil sump of the air filter every 1-2 days and clean the muddy water, so as not to affect the normal operation of the engine.



10. The oil filter needs to replace the lower filter element after three oil changes; the upper and lower inlet cores need to be replaced at the same time after six oil changes according to the actual situation at any time.





In general, the oil bath air filter can effectively purify the air, protect the engine and prolong its service life by means of oil-impregnated lubrication and filtration. Therefore, in the daily use and maintenance, you need to pay attention to the role and importance of the oil bath air filter, regular cleaning and replacement to ensure the normal work and safe operation of the engine.
